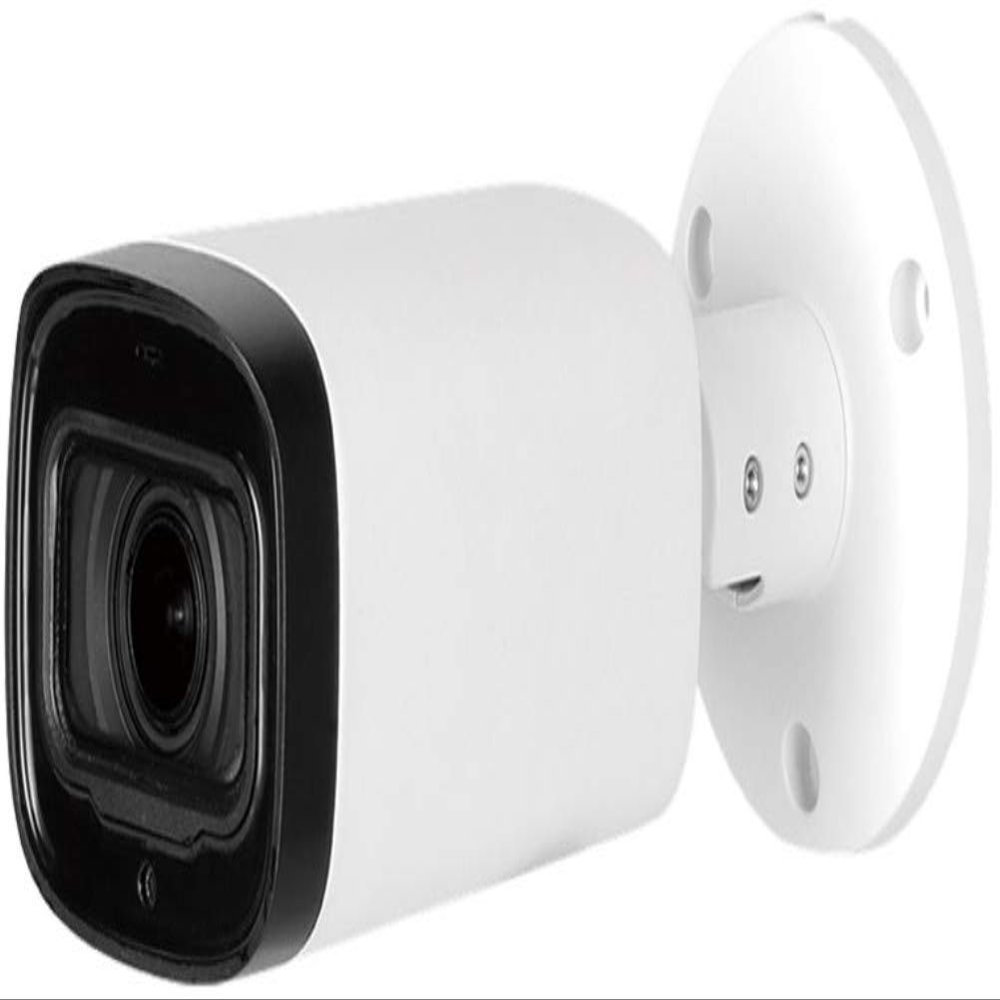

Diamond HCC3120R-IRL-Z 2MP HDCVI IR Bullet Camera, 1/2.7" CMOS Image Sensor, 2.7-12mm Motorized Lens, Max 30fps@1080P, Angle of View 105.9~33.4, Max. IR Length 60m (197ft), IP67, DC12V

Description

• Max 30fps@1080P
• HD and SD output switchable
• 2.7-12mm Motorized lens
• Dimensions: 213mm90.4mm90.4mm (8.39"3.56"3.56")
• Weight: Net Weight 0.55kg (1.21lb) Gross Weight 0.70kg (1.54lb)

More Information Max Image Resolution2MP Image Sensor1/2.7" CMOS Image Size1920(H)1080(V), 2MP Electronic ShutterPAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination0.02Lux/F1.8, 30IRE, 0Lux IR on S/N RatioMore than 65dB IR LEDs4 Smart IRSupport IR DistanceUp to 60m (197feet) IR On/Off ControlAuto / Manual Focal Length2.7-12mm Angle of ViewH: 105.9~33.4 Max. ApertureF1.8 Optical ZoomN/A Close Focus Distance200mm 7.87'' DORI Distance DORI DefinitionDistance Wide Tele Detect25px/m(8px/ft)45m(148ft)132m(433ft) Observe63px/m(19px/ft)18m(59ft)53m(173ft) Recognize 125px/m(38px/ft)9m(30ft)26m(87ft) Identify250px/m(76px/ft)5m(15ft)13m(42ft) Pan / Tilt / RotationPan: 0 ~ 360 Tilt: 0 ~ 87 Rotation: 0 ~ 360 Video CompressionN/A Video Resolution1080P (19201080) Video Frame Rate25/30fps@1080P, 25/30/50/60fps@720P Day / NightAuto (ICR) / Manual BLC ModeBLC / HLC / DWDR White BalanceAuto / Manual Gain ControlAGC Digital Noise Reduction2D Motion DetectionN/A Audio CompressionN/A Video Output1-channel BNC high definition video output / CVBS video output (Can switch) CertificationsCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Audio InterfaceN/A RS485N/A Alarm InN/A Alarm OutN/A Power Supply12V DC 30% Power ConsumptionMax 12.1W (12V DC, IR on) Operating Temperature-30C ~ +60C (-22F ~ +140F) / Less than 95% RH * Start up should be done at above -30C (-22F) Storage Temperature-30C ~ +60C (-22F ~ +140F) / Less than 95% RH Ingress ProtectionIP67
