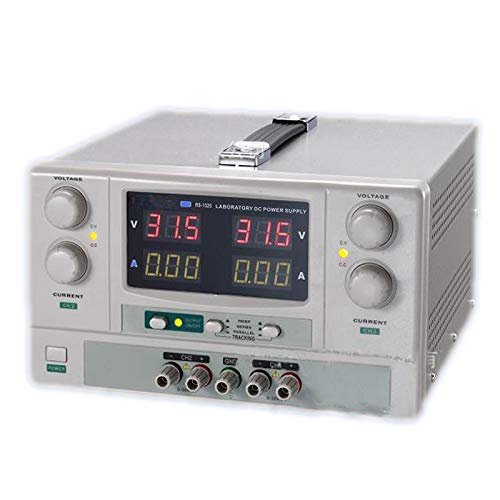

Linear Regulated Voltage & Current Double Output DC 0-30V Adjustable 5A max Linear Power Supply

Description

• Two loading linear power supply

The Star Power JK3025D dual output linear Power Supply Fature
- Constant voltage/ Constant Current
automatic tracking output, automatic series and parallel operation,
1 parallel use, double current output.
2 Used in series, double voltage output.
- Voltage and Current regulated at
Votlage: DC 0-30V
CurrentDC 0-5A,
SPEC
Voltage regulation characteristics Output voltage: continuously adjustable from 0 to rated voltage
Source effect CV : 110-4+3mV (10% of rated source voltage)
Load effect: CV
110-4+3mV (output current )
210-4+3mV (output current)
Ripple and noise0.3mV (effective value)
Voltage temperature coefficient : 500PPm/C
Current regulation characteristics Output Current: continuously adjustable from 0 to rated Current
Source effect CC : 210-4+5mA
Load effect CC : 210-4+5mA,
Ripple and noise : 3mA(effective value)
Current temperature coefficient: 500PPm/
Tracking feature A Parallel feature:
Source effect:CC 110-4+5mV
Load effect CC :
110-4+3mA,(output current3A)
210-4+3mV(output current 3A)
B Series feature:
Source effect:CC 110-4+5mA
Load effect :CC 300mV
Display accuracy Digtal Display accuracy: 3 digtal dispaly (0.5%+3d)
Resolution Voltage display resolution in 3 digtal :100mV
Current display resolution in 3 digtal:10mA
Recovery Time Recovery Time: 100S
weight Kg 12
Dimension(LWH)mm : 303255155
