PHAT SATELLITE 75ft Made in USA Plenum RG-11 Coax 3Ghz HD Cable TV Antenna 14AWG 75 Ohm All Brass CONNECTORS CMP UL ETL Anti-Static Commercial FIRE Retardant Cut to Order Assembled in USA INTL

Description

• CABLE SPECIFICATION: MADE IN USA SOLID CORE 14AWG RG11 CABLE 3Ghz 75 Ohm Swept Tested 60% Braided, 100% Foil Shield Commercial Plenum Rated Application UL ETL CMP Rated, Anti-Static, Non-Toxic, Smokeless, Fire Retardant

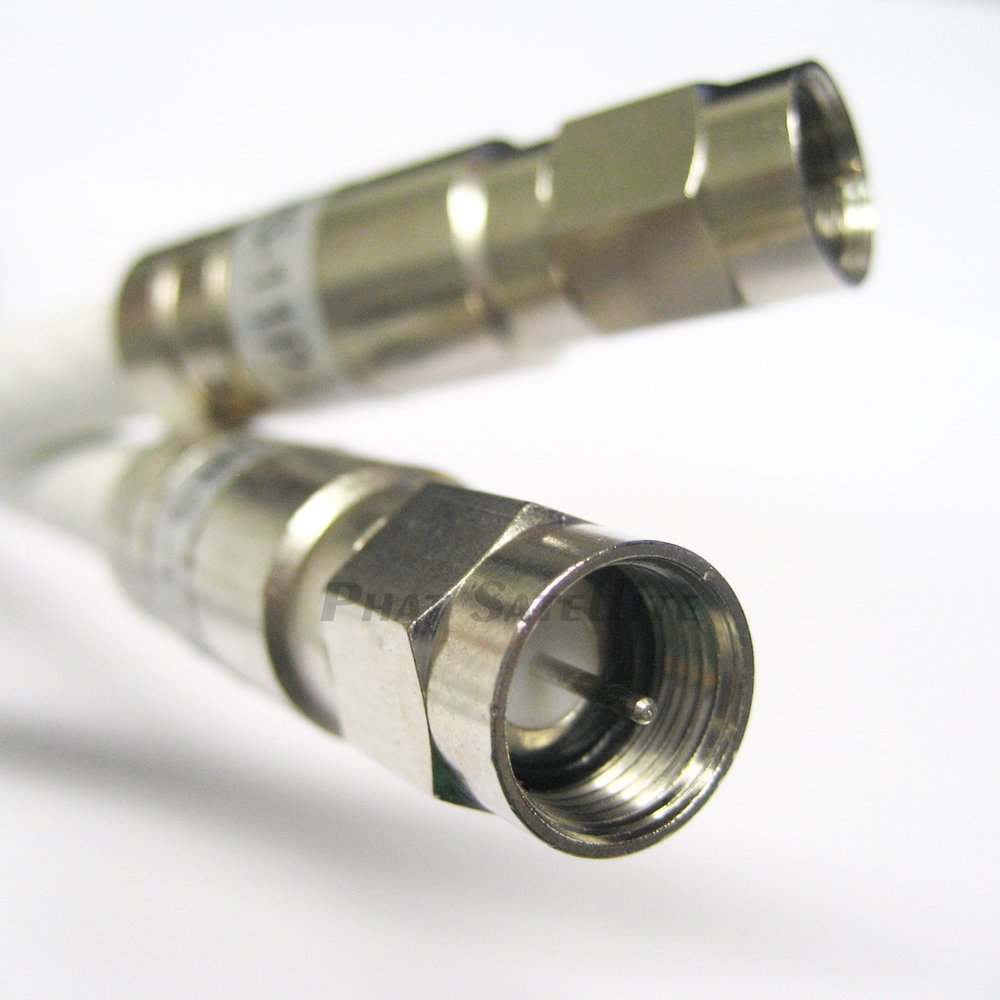

• CONNECTORS: UNIVERSAL PLENUM COMPRESSION CONNECTOR ONE PIECE ALL METAL DESIGN NICKEL PLATED BRASS CONSTRUCTION PATENTED DUAL 360 COMPRESSION RINGS LOCKING MECHANISM FOR INCREASED TORQUE RETENTION
• USAGE: - HD OVER THE AIR ANTENNA - Satellite TV - Ham radio, short wave antenna usage - Cable Modem Internet - HD Digital Cable TV - Cellular Boost Antenna - Speed sensor, and other F-connector coaxial required device
• ASSEMBLY: Customized Cut to Order - Made from Foreign and Domestic parts - Assembled n USA by PHAT SATELLITE INTL at 8 facilities across the USA
• PLEASE SEE ALL AVAILABLE CABLES WITH VARIOUS SPECIFICATIONS by PHAT SATELLITE INTL. SEARCH ON AMAZON FOR PHAT SATELLITE INTL

CABLE SPECIFICATION MADE IN USA SOLID CORE 14AWG RG11 CABLE 3Ghz 75 Ohm swepted tested 60% braided, 100% foil shield Commercial Plenum rated application UL ETL CMP rated, Anti-static, non-toxic, smokeless, fire retardant PVC JACKET Capacitance 52.5 pF/m | 16.0 pF/ft Characteristic Impedance 75 ohm Characteristic Impedance Tolerance 3 ohm Conductor dc Resistance 11.00 ohms/kft Dielectric Strength, conductor to shield 4000 Vdc Jacket Spark Test Voltage 5000 Vac Nominal Velocity of Propagation (NVP) 86 % Shield dc Resistance 3.50 ohms/kft Structural Return Loss 15 dB @ 10003000 MHz | 20 dB @ 51000 MHz Structural Return Loss Test Method 100% Swept Tested
CONNECTORS Universal plenum compression connector One piece all metal design Nickel plated brass construction Patented dual 360 compression rings Locking mechanism for increased torque retention USAGE Lower signal loss over RG-6 HD OVER THE AIR ANTENNA Satellite TV Ham radio, short wave antenna usage Cable Modem Internet HD Digital Cable TV Cellular Boost Antenna Speed sensor, and other F-connector coaxial required device ASSEMBLY Customized Cut to Order Made from Foreign and Domestic parts Assembled n USA by PHAT SATELLITE INTL at 8 facilities across the USA

PLEASE SEE ALL AVAILABLE CABLES WITH VARIOUS SPECIFICATIONS by PHAT SATELLITE INTL.

SEARCH ON AMAZON FOR PHAT SATELLITE INTL
