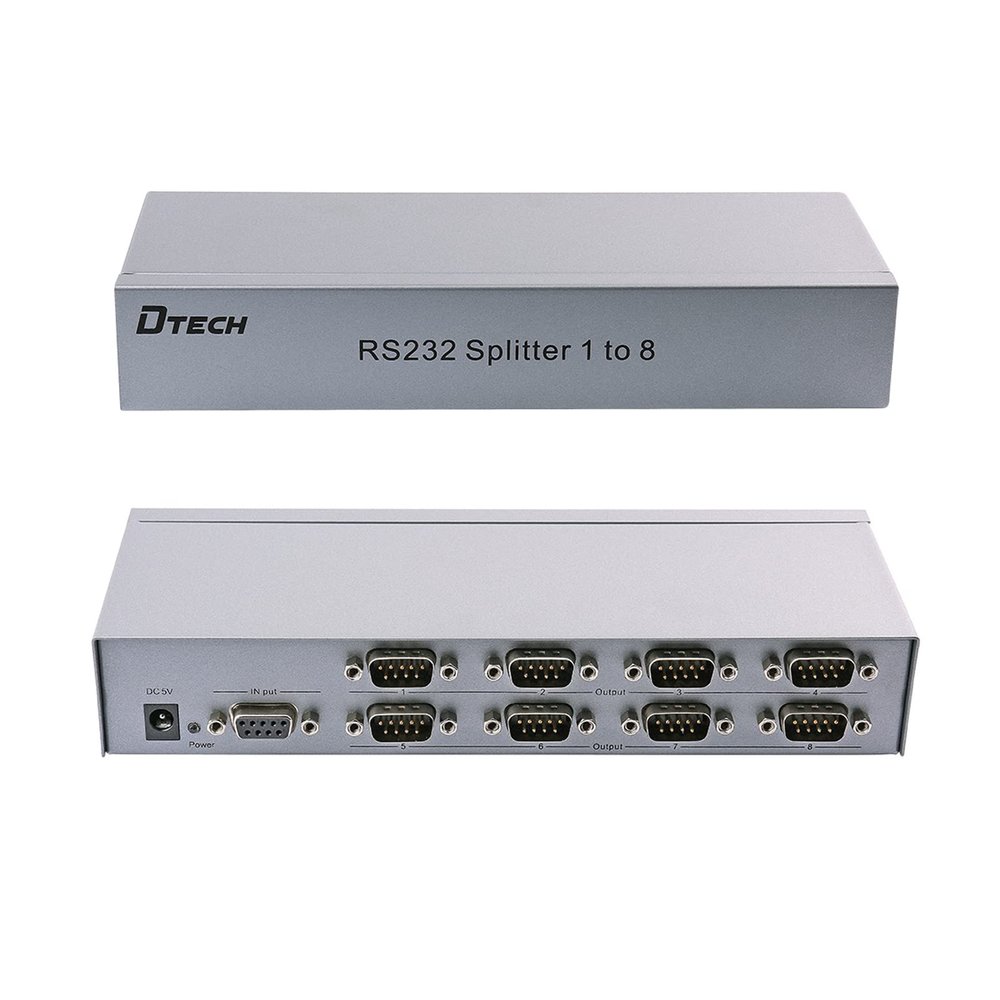

DTech Serial Splitter 8 Port Industrial RS232 Expander COM Port Switch Box with Power Adapter for Sharing PCs and Capture Data - 1x8

Description

• 9 Pin Serial Port Expansion Hub adds 8 real hardware serial rs-232 ports to your system for data communication
• Serial line splitter supports Bi-directional transmission and enables you to use 1 master to control 8 slave devices at the same time, or use 8 masters to control 1 device
• Serial adapter hub's DB9 Female pinout is pin2 - TxD, pin3 - RxD, pin5 - GND (row 1 from RIGHT to LEFT is pin 1-5); and DB-9 Male pinout is pin2 - RxD, pin3 - TxD, pin5 - GND (row 1 from LEFT to RIGHT is pin1-5)
• Industrial RS232 splitter distribution box in metal housing provides better RF shielding, durability and efficient cooling for long life and dependable performance
• Baud Rate and protocol is not limited, which depends on DB-9 devices that transmit signal; No need of driver, plug and play; ideal for PC computer laptop Mac, modem, radio, GPS receiver, personal weather station, PDA adapter, printer, mouse, etc.

8 way serial data splitter is a cost effective solution when you need to manage and control multiple DB9 RS232 devices via computer.
Connection 1: Monitor and Control Multiple Terminal Device via 1 PC
1 PC connected to input port, and 8 devices to output ports via Straight Through serial cables separately (functioned as RS232 splitter: 1 master to control 8 slave).
Serial port combiner splits 1 port in multi hardware COM ports that are used by several applications, so those applications can receive the same data from PC at once (duplicator).
Connection 2: Capture Data from 1 Terminal Device on Redundant PCs
8 PCs connected to output port, and 1 data acquisition equipment to input port via Null Modem serial cables separately.
(functioned as RS-232 switch: 8 master to control 1 slave)
Several PCs to receive data from 1 device, allowing you to share multiple PCs on a single peripheral; only 1 terminal device can send data to a laptop at a time.
Easy and Simple
No need of driver, plug and play; serial port hub will automatically output the values as long as its wired and powered. DC 5V 1A power adapter help you to get stable power to transmit and receive data without any delay.
3 Wire RS 232 Connection
for IT Administrators to add legacy functionality to notebook, desktop PC and server without COM port
Serial adapter hub connects monitor and control industrial/automotive sensors and equipment, barcode scanner, scale, GPS, POS, radio, personal weather station, receipt printer, satellite receiver, modem, PDA with serial sync Connect and program LED and Digital signage board ...
Specific
Master bus: 1x DB9 female (pin2- TxD, pin3- RxD, pin5- GND)
Slave bus: 8 x DB9 male (pin2 -RxD, pin3 - TxD, pin5 -GND )
Input/Output Level: RS232-C
Cascade: Yes
Whats Included:
1x Serial Splitter Box
1x Power Supply Adaptor
1x Manual
