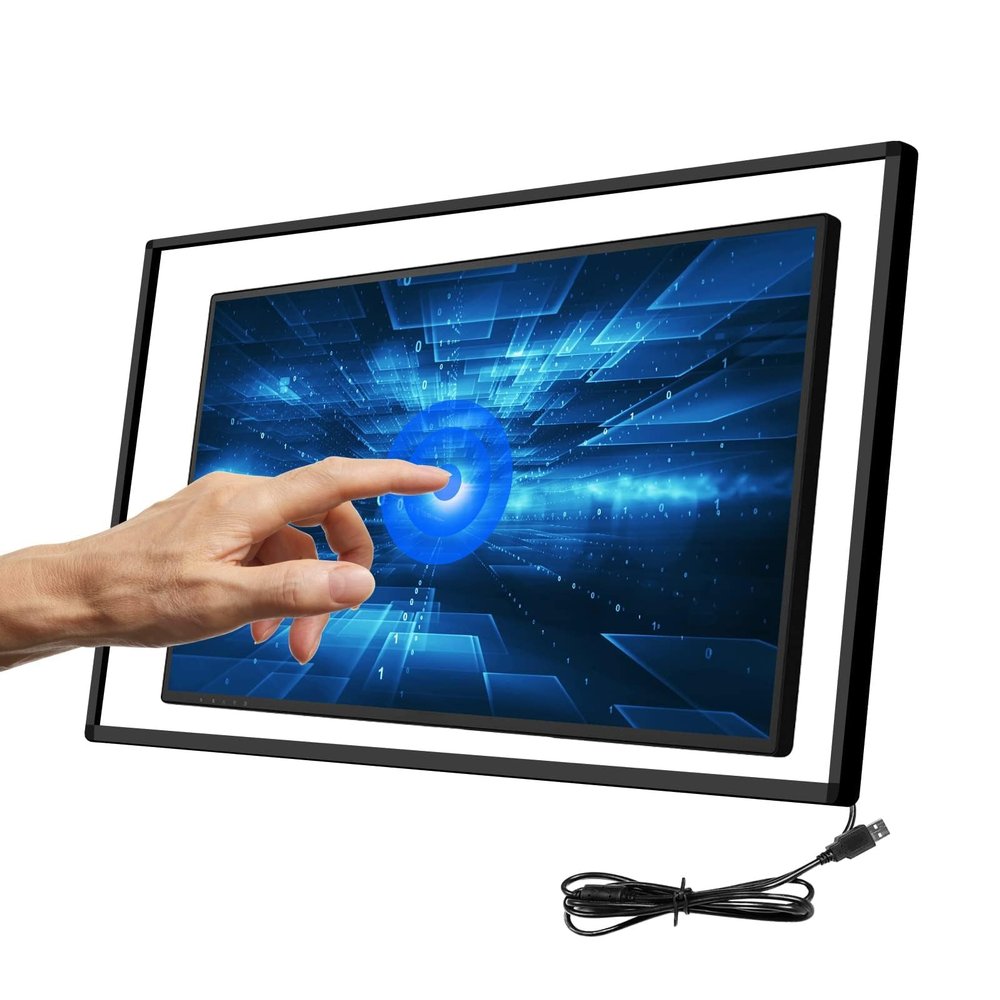

SpecialTouch 55 Inch Infrared Touch Screen Frame 20 Points Interactive Ir Touch Panel Overlay Suitable for Touch Monitor TV Frame, Touch Whiteboard

Description

• High Quality Material: With aluminum alloy black frame, it has a long service life. No blind spots, breakpoints, jumps, pauses and other undesirable phenomena. Fast response time 10ms.
• Lightfast Design: The IR touch frame can be applied to internal and external link environments, And is widely used in touch all-in-one machines, touch kiosks, touch digital signage.
• Easy to Install: Our ir touch screen overlays are plug-in design, The installation work is very easy. If the touch positioning is not accurate after installation, We can provide calibration software.
• Scope of Application: USB plug and play, intelligent automatic calibration, driver-free and maintenance-free. Available for Windows, The HID driver needs to be installed in Mac OS.
• Package: Touch frame only (without monitor , without glass)Warranty is 1 year.If there is any other question , Please feel free to contact us

SPECIFICATION Standard Size: 55 inch Ratio: 16:9 Number of Touch Points: 20 Minimum Touch Object: 2mm Touch Activation Force: No minimum touch pressure required Touch Durability: Unlimited Durability Resolution: 32768*32768 Linearity Deviation: 1mm Frames per Second: Up to 450 fps Typical Response Time: 3-10ms Light Transmission: 100% without glass Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac (Does not support Smart TV Android system, Raspberry Pi) Protocols: HID,TUIO,Flash Re-development Provide: free SDK, support C/C++, C#, Java etc. Noise : No Noises Lift Time : 7 -10 years ELECTRICAL Power Supply: Single USB Connection Low Power Consumption: Operating 2W, Stand By 250mW ESD: Contact Discharge 8kV,Air Discharge 15kV,15kV on USB connector pins ENVIRONMENT Operating Temperature: -20C~70C Storage Temperature: -40C~85C Operating Humidity: 10%~90%RH(Non-condensing) Storage Humidity: 10%~90%RH Certification: FCC,CE,ROHS Warranty: 1 year Note : If there is any other question , please feel free to contact us !
