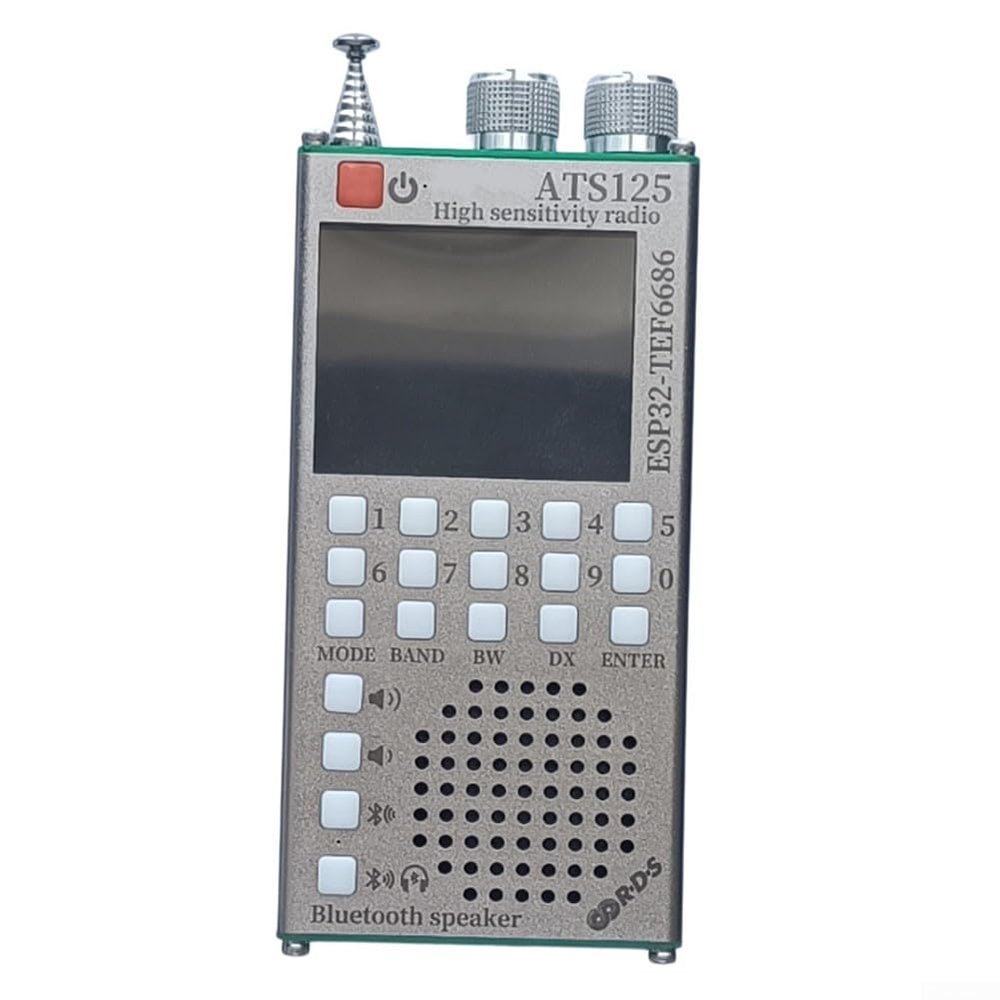

Startbuymore ATS125 FM Portable Radio for Home & Outdoor, Strong Reception & Sound, with 2.4 Inch Touchscreen, TEF6686 Chip, Numeric Keypad

Description

• [ADVANCED RADIO TECHNOLOGY] The ATS125 utilizes the TEF6686 chip to deliver outstanding sensitivity and audio quality for an exceptional listening experience.
• [INTUITIVE CONTROLS] Navigate effortlessly with the 4-inch resistive touchscreen and numeric keypad, making it simple to find your preferred stations.
• [RDS CAPABILITIES] Stay informed with extensive RDS data display, enjoy customizable themes, and utilize automatic/manual station scanning features.
• [ BATTERY PERFORMANCE] Equipped with a long-lasting 2500mAh battery that ensures uninterrupted enjoyment during travel or outdoor excursions.
• [SIZING REMINDER] Please check local radio support for RDS information to maximize your product experience.

Features:
*The ATS125 is a high-performance, high-sensitivity, multi-function radio, following in the footsteps of the ATS20/ATS25/ATS100/ATS120/ATS200 series.
*It utilizes an open-source design based on the PE5PVB, optimized and combined with Jerry's high-performance chip, and integrates high-performance automotive-grade TEF6686 chip, achieving a highly sensitive, high-fidelity radio.
*This for DSP car tuner features a variety of functions and algorithms (CEQ, EMS, , PACS, and a noise suppressor). The TEF6668_SSP32's built-in radio not only supports radio listening but also offers a wealth of features, such as displaying nearly all RDS (Radio Data System) data, automatic/manual station scanning, a mute function, a battery voltage display, variable themes, multiple languages, and station presets.
*We've redesigned the circuit board based on the proven front-end receiver circuitry of the TEF6686 and, based on open-source projects, a 2.4-inch resistive touch-screen color LCD. While maintaining portability, it displays extensive RDS information (RDS information requires local radio support). A numeric keypad is added for quick frequency input, and a large 2500mAh battery provides extended battery life.
*In short, we hope this portable travel radio with high sensitivity meets your needs! Due to continuous optimization and firmware updates by audiophiles both domestically and internationally, new features may be released. This manual may contain some functional differences. We apologize for any inconvenience this may cause.

Basic Parameters

Control Chip: ESP32-WROOM-32U
Chip: Utilizes a high-performance transceiver chip from Jieli
Display Technology: 2.4-inch 320x240 resolution, full-viewing angle IPS LCD with resistive touchscreen
Control : Standard numeric keypad input and button adjustments, also supports third-party touchscreen firmware
Antenna: Integrated 820mm extra-long antenna, with a 3.5mm external antenna connector on the bottom
Speaker Output: Utilizes the TI TPA6211A1 audio chip and features a 40mm telephoto full-range speaker for powerful bass and clear highs.
Stereo Transmission and Reception Function:

Receive Mode:
You can connect your phone to the radio via , and the radio can function as a speaker. The 40mm telephoto full-range speaker delivers powerful bass and clear highs.

Transmission Mode:
The radio transmits the signal received to headphones or speakers via , allowing you to enjoy high-quality music.

Battery Specifications:
3.7V/2500mAh Li-Polymer Battery

Charging Port:
Type-C and Shared Data Update Port

Communication Port:
Integrated for CH340 USB-to-Serial Chip, Upgradable to External Communication via Type-C Port

Specifications:
Part Name:radio
Material:aluminum
Size:120*63*25mm
Color:As the picture

Package Content:
1 x radio(without antenna)
