Description
- Use this DC voltage converter can get a "clean" and stable DC 48V output,suitable for golf cart Club cart LED light power,and golf cart radio or run the stereo.marine radio,HIFI system.very easy to install and it worked great.
- Nomial input voltage: DC 12V ,Input range: DC 10-16V; Output Voltage: DC 48V 10A 480W.Adopt Synchronous Rectification Technology to improve conversion efficiency,Maximum Efficiency:95%; Ripple Wave: 50mV;have a slight draw ,Surprisingly low standby current draw,Device consumes current with no load attached is about:50mA,Starting delay time:2S.
- Non-Isolated Electric circuit,Assembled with smart chip, features Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
- Aluminium alloy heat dissipation case.with epoxy potting, 100% waterproof, anti-dust, anti-shock protection and better heat dissipation
- These voltage converters are excellent power transformers, can work safely and reliable in -40C~80C range.working wonderfully and outputting the proper voltage even though the input voltage changes.Easy to install and hook up. highly recommend it.
Our converters are great for on-board electrical appliances, LED displays,LED light power,Cable TV,outdoor environment, and widely used in automotive.
communications, electricity, coal,aerospace, defense, surveillance systems,railway signals, medical equipment,instruments,meters and other fields.
Technical Specifications:
Input Voltage:DC:12V ( Wide Input DC 10V - 16V)
Output Voltage:DC 48V
Output Current: 10A (max);Work for appliances from 0.5Amp to 10Amp automatically
Output Power: 480W (Output power maximum)
Conversion Efficiency: Up to 95%
Operating Temperature:-30~+80
High-efficiency up to 95%
Over-current, over-voltage protections
Over-temperature, shutdown, short-circuit, reverse polarity protections
Aluminium alloy heat dissipation case.

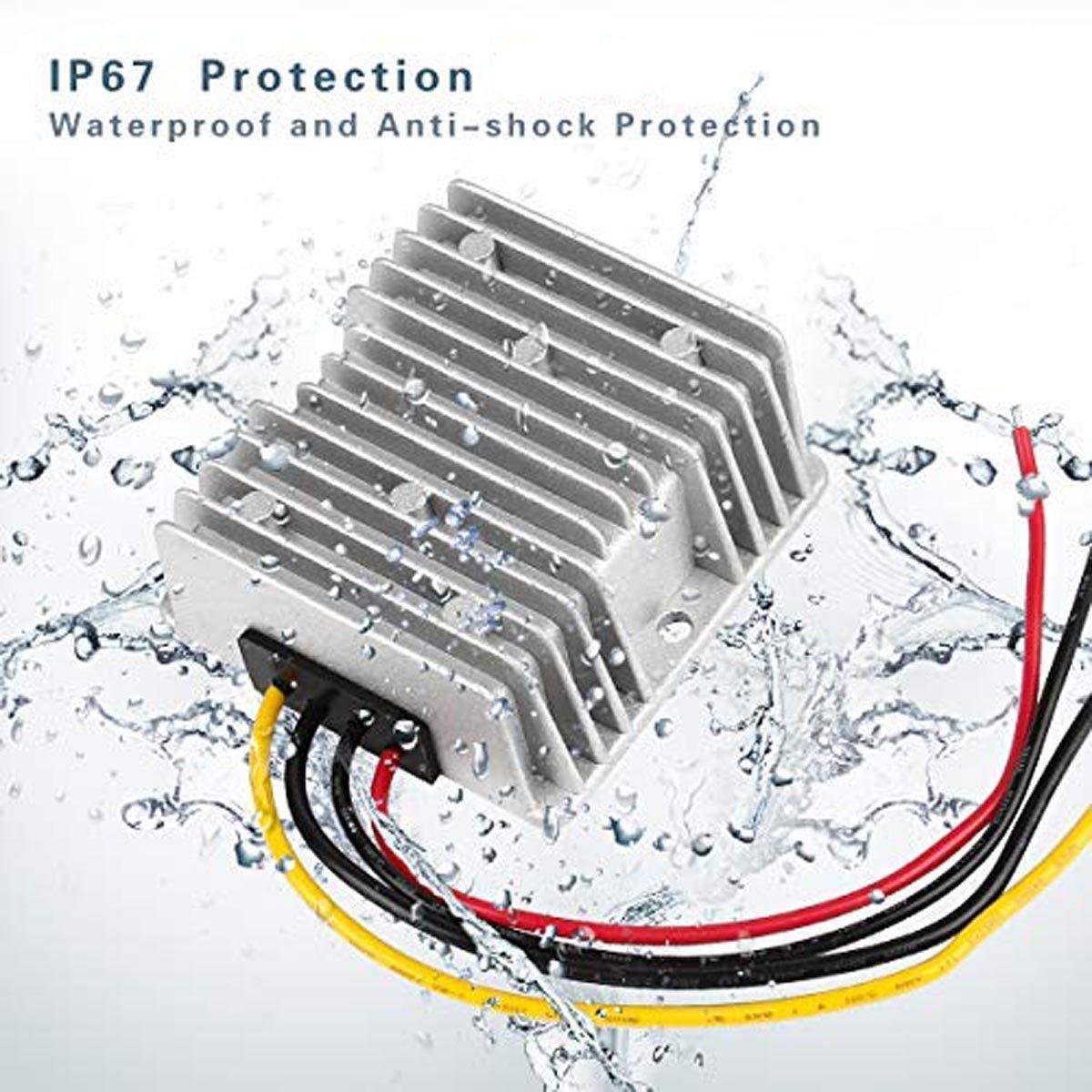

Waterproof sealed,Waterproof:IP67.

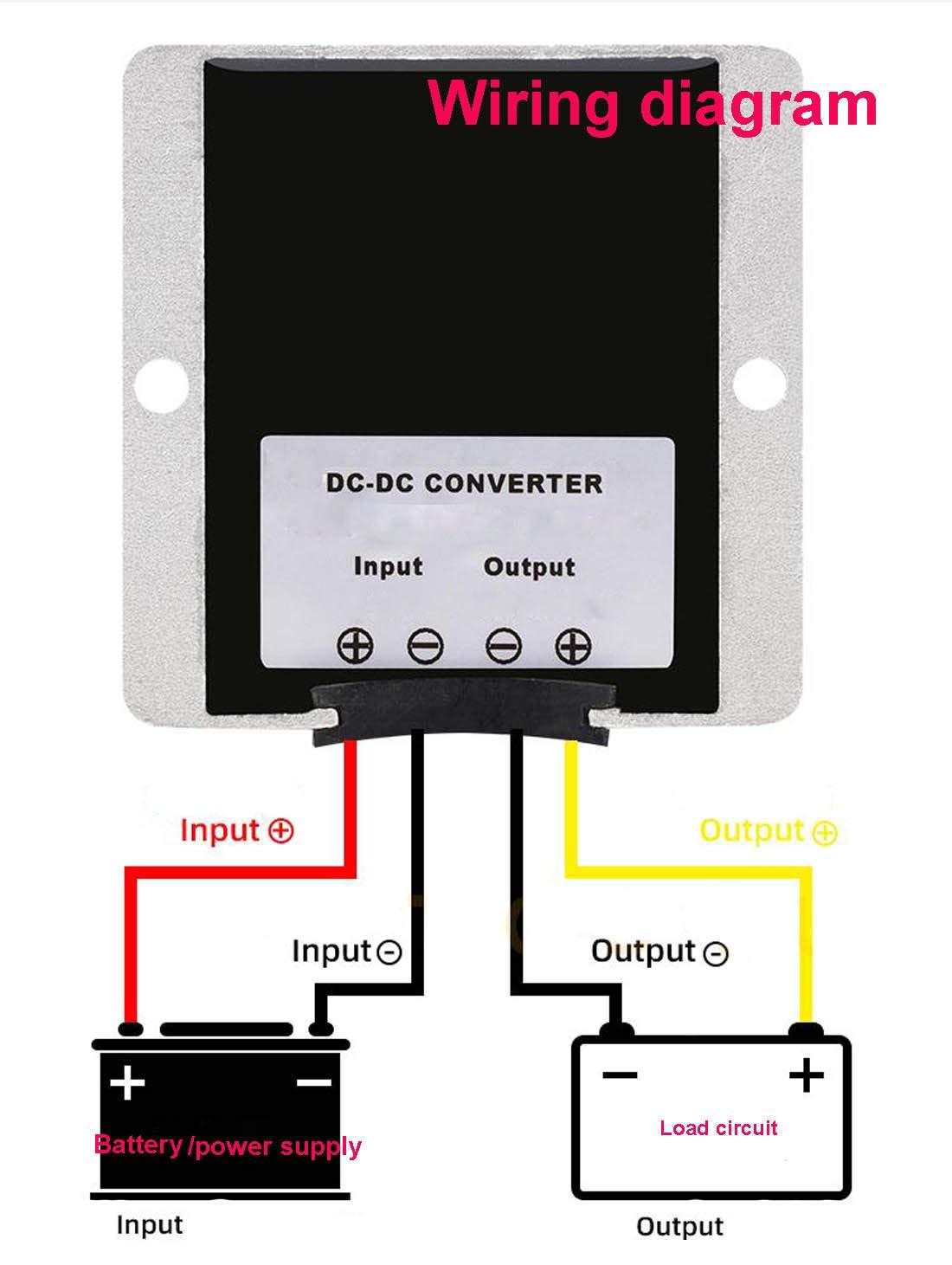

Simple 4 wires set up, 12 V + and - input;48V + and - output.

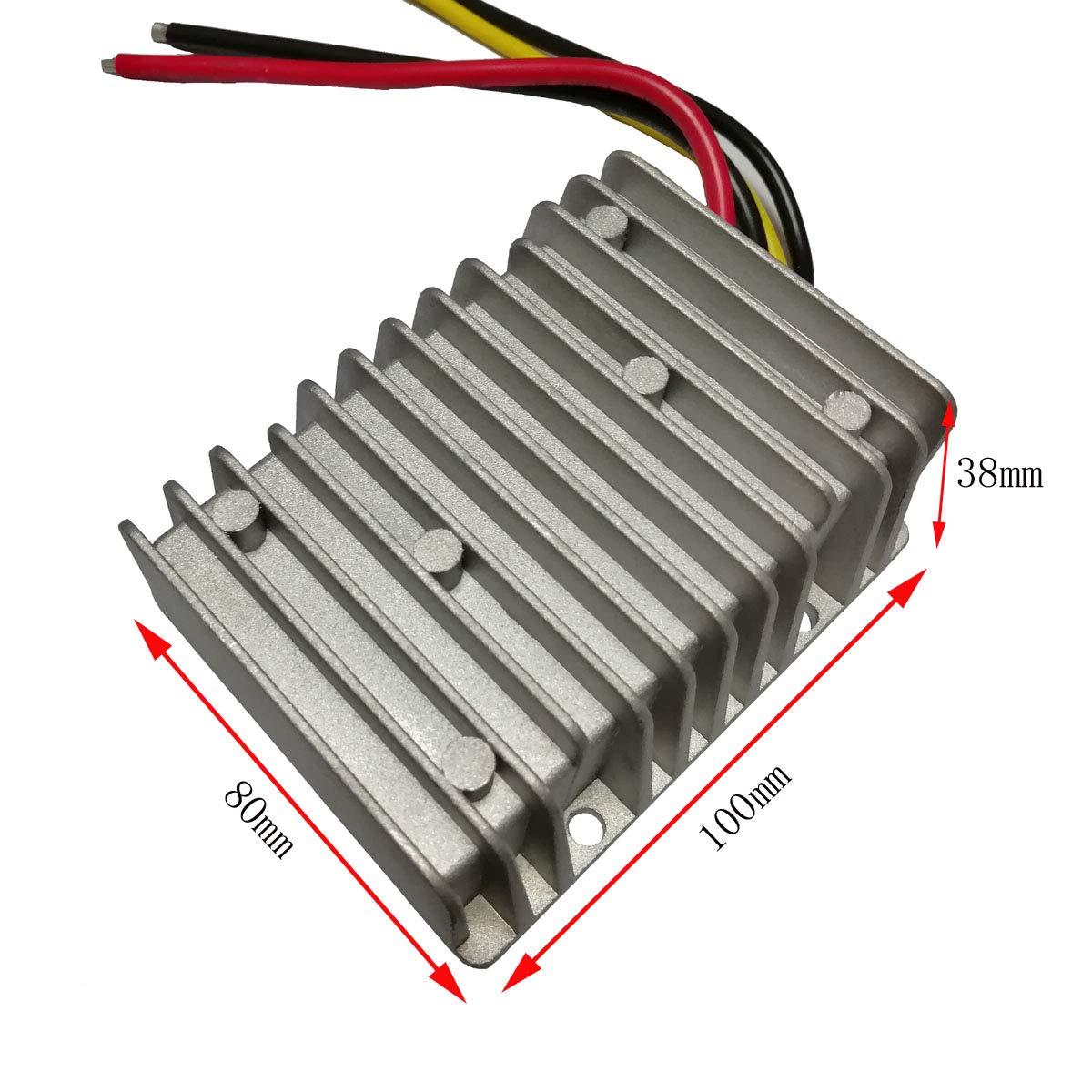

Size:1008038mm/3.9x3.1x1.5 inches;
Wiring Length:6" (16mm);
Weight:550g/19 OZ; ;
Package inclded: 1x DC-DC converter 12V to 48V 10A .
Notes:
Please connect the polarity correctly, or the converter will be burnt.
This DC/DC Converter can't work as solar controller or wind controller.
this DC converter is non-isolated designed,when you power on ,
remember do not connect the two negative electrodes together(usually is the black color cable) ,
even touch,otherwise ,the converter will burn down/damaged ,please be carefull.
Often applied to:
We used this to hook up a underbody all the LED lights on golf cart.
The voltage regulator worked well to increase the 12 volts battery on golf cart to 48 volts,also can run my Headlights the stereo of the golf cart.
Using for lights and bluetooth speakers and works great!
Used this to hook up the radio or light on golf cart or Club car was very easy to install and it worked great.
Perfect addition to the marine radio.
