Description
- The high-voltage module is made by using the tesla coil principle, and outputs high-voltage pulse high-voltage current, small volume, high efficiency, simple peripheral circuit (just need to connect the switch, the battery can be) the discharge intensity is fierce.
- DC boost step up power module high voltage generator input voltage: DC 3V to 6V. input current: 2A - 5A, output voltage: 400000v (please pay attention to safety).
- The input voltage of the arc generator is DC 3-6V and output dc 400000V high voltage, input wiring: red - positive; green - negative; output wiring: the other side same color cable.
- 400kv boost step up module can be used as a scientific experiment, electronic equipment, negative ion generator, high voltage source in the production of small science and so on.
- 400kv step up power module high pressure discharge distance between: 10 mm - 20 mm, to avoid burning use the time limit Compatible with 1 minute.
Input voltage: DC 3V to 6V
Input current: 2A - 5A
High pressure type: the type of pulse current
Output voltage: 400000v (please pay attention to safety)
High pressure discharge distance between: 10mm - 20mm
The output high voltage wire length: 100mm
Input power cord length: 100mm

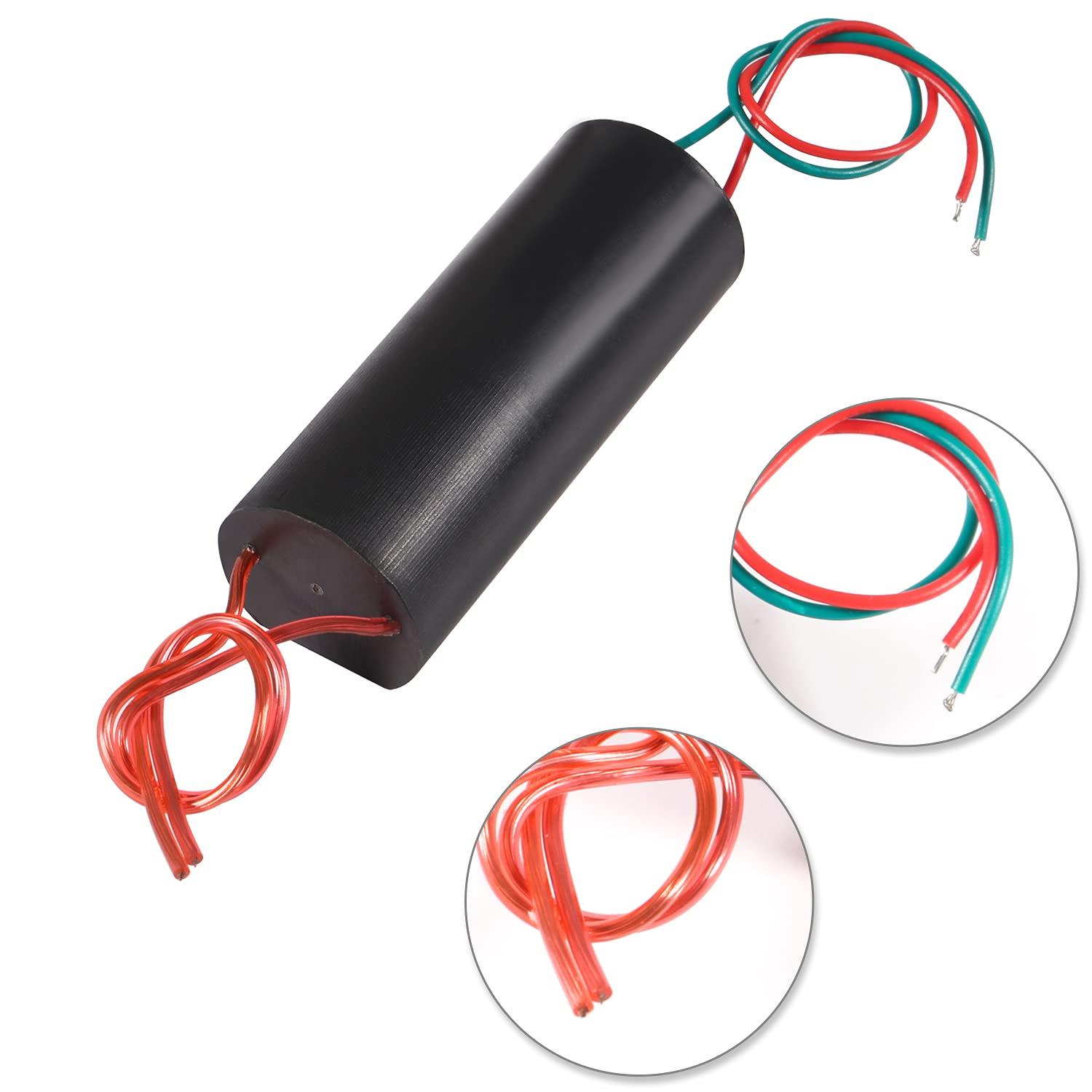

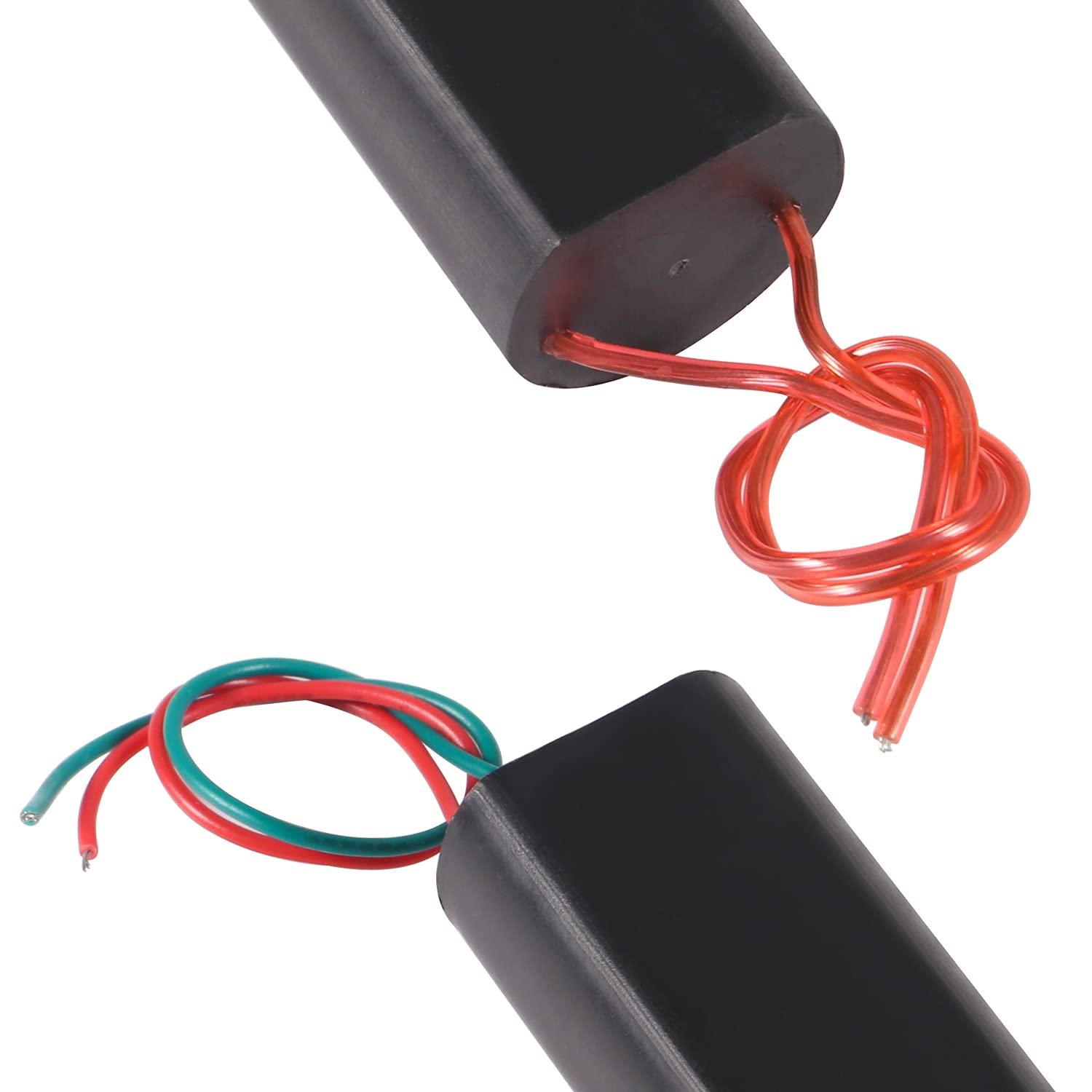

Wiring:
Red and green power connection red line""+"" green line ""-""
output : the other side same color cable
Notice:
The high-voltage module should avoid the use of electricity in high voltage no-load .
Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) .
Experimental test of the arc distance from short to long , don't exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module.
Work:
intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting .
Improper voltage and long working hours easily damaged module
Package include:

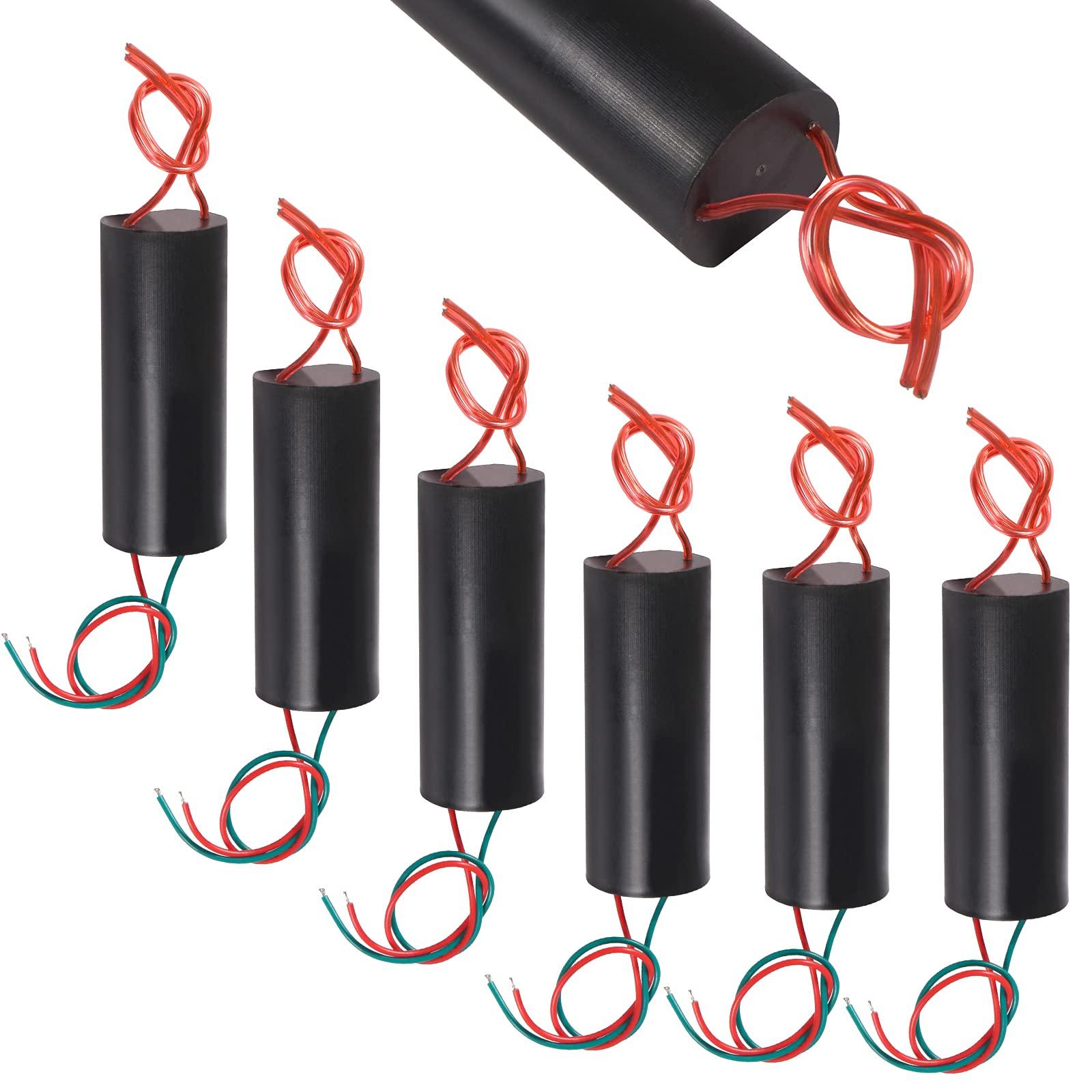

7 x 400kv boost step up power module
