Description
- Fully meshed front panel on N400 case allows superior airflow and supports up to 240mm water cooling radiator (N400)
- 500W continuous output at 40C with 80+ efficiency certification (Power Supply)
- Supports up to 8 fans and 3 SSDs on N400 case
- 100,000 hours MTBF and active PFC on power supply
- Includes two 120mm fans and industry grade protections - OVP, OPP, SCP (Power Supply)
Cooler Master N400 NSE-400-KKN2 Mid-Tower Fully Meshed Front Panel Computer Case (Midnight Black)
The N400 is one of two computer cases joining the N200 in Cooler Master's new N-Series. Along with its brothers, the N400 has numerous features that help it stand apart from the competition. It does so with a full array of exciting options that have been designed specifically with cooling performance in mind, especially water cooling. Its full mesh front panel and well-ventilated layout provide for a more abundant flow of air throughout the case. Fully embracing water cooling, N400 supports radiators up to 240 mm.

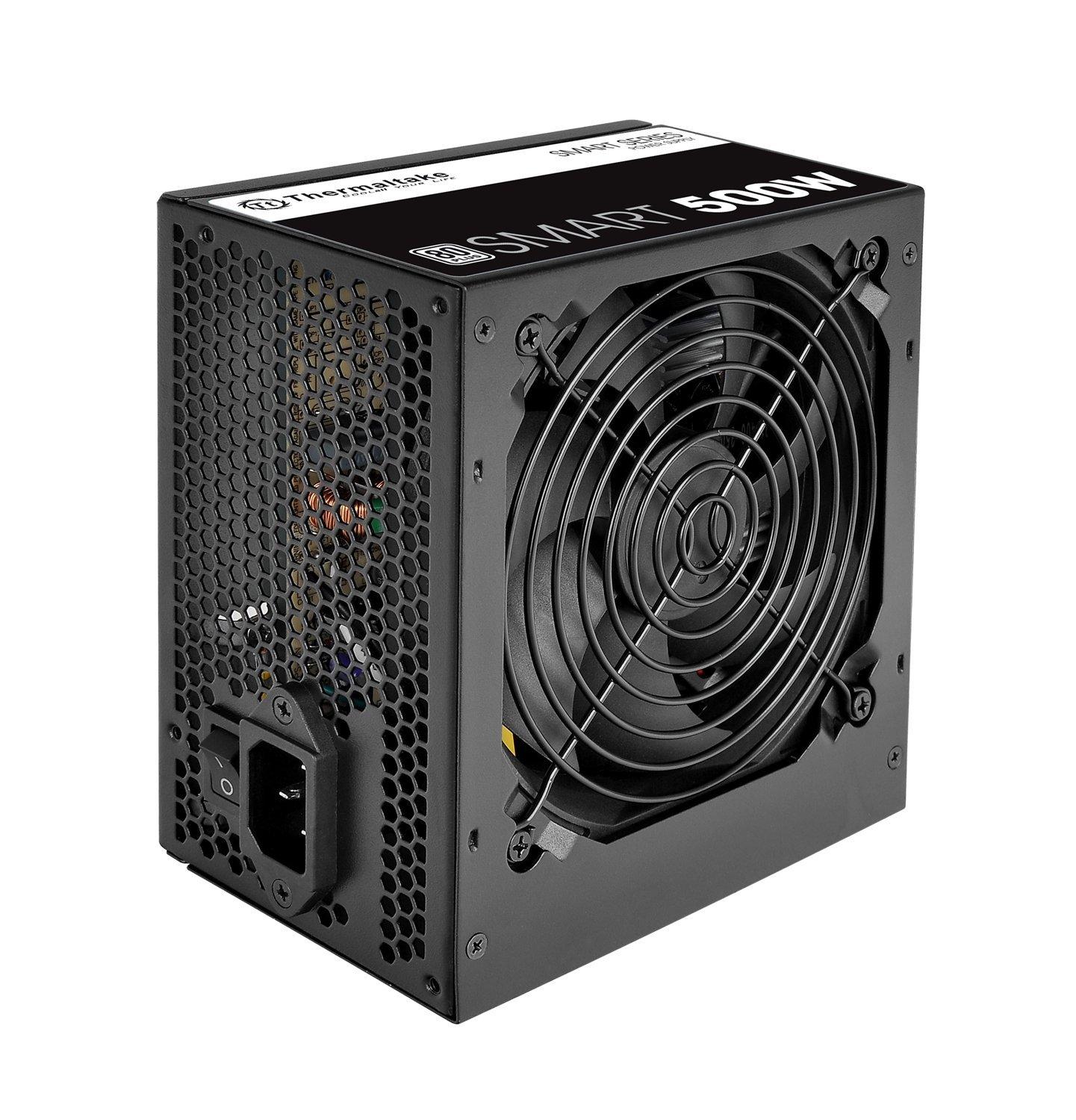

Thermaltake Smart 500W 80+ White Certified PSU, Continuous Power with 120mm Ultra Quiet Cooling Fan, ATX 12V V2.3/EPS 12V Active PFC Power Supply PS-SPD-0500NPCWUS-W
Incorporating various high-quality components, the smart series - models are Rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent Airflow at an exceptionally low noise level. Additionally, the single +12V rail design enables non-stop usage with stable and reliable performance. Smart Series adopt 120mm cooling fan delivers excellent Airflow at an exceptionally low noise level. Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS standard Certified. High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage. Single +12V output.
p/N: ps-spd-0500npcw-w short
model: sp-500ah2nkw
type: Intel ATX 12V 2. 3max.
Output capacity: 500w
color: black
dimension (H x W x D): 86mm x 150mm x 140mm pfc (power factor
correction: active pfc power
good signal: 100-500 msec
hold up time: 16msec (minimum) within 60% load input current: 8a max input frequency range: 50 Hz - 60 hz input
voltage: 100Vac 240vac operating temperature: 5 to +40
operating humidity: 20% to 85%, non-condensing
operating temperature: -40 to +55 operating humidity: 10% to 95%, non-condensing cooling system: 120mm fan: 1800 R. P. M. 10%efficiency: 82-86% efficiency @ 20-100%
load mtbf: 100, 000 hrs minimum safety Approval: CE/CB/TUV/ UL/
fcc pci-e connector: PCI-E 6+2pin x 2.
