Description
- Woofersetc.com your online car audio superstore Brand New! 2508G-D4 - DD Audio Digital Designs 8" Dual 4-Ohm 3600W Subwoofer Features & Specifications: Its a favorite among enclosure builders and installers for its performance and versatility. Its enjoyed daily by drivers who love their music and have a tendency to get over enthusiastic with the bass knob. Its also a testament to DD AUDIOs quest for performance, devotion to USA Made build quality, and commitment to the ever evolving
- The g latest revision of the 2508 features major performance enhancements, such as an increased magnet diameter for greater power and control, new dual stage aluminum heat sinks for improved heat management, a reimagined competition grade iron cloth spider with more stability and better durability, a second generation V-ROM surround with triple density expansion joint to further smooth the effects of expansion/contraction, an X-5 carbon loaded synthetic fiber non-pressed pulp cone with a peerl

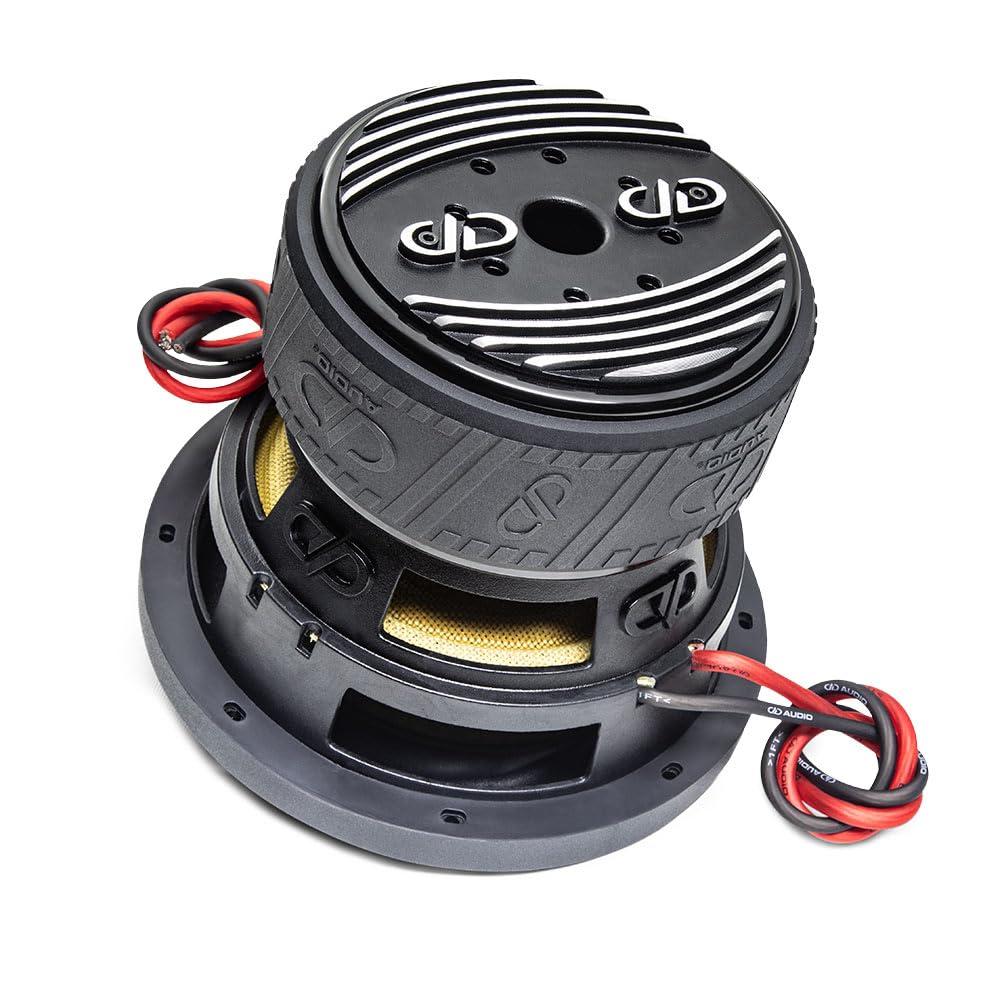

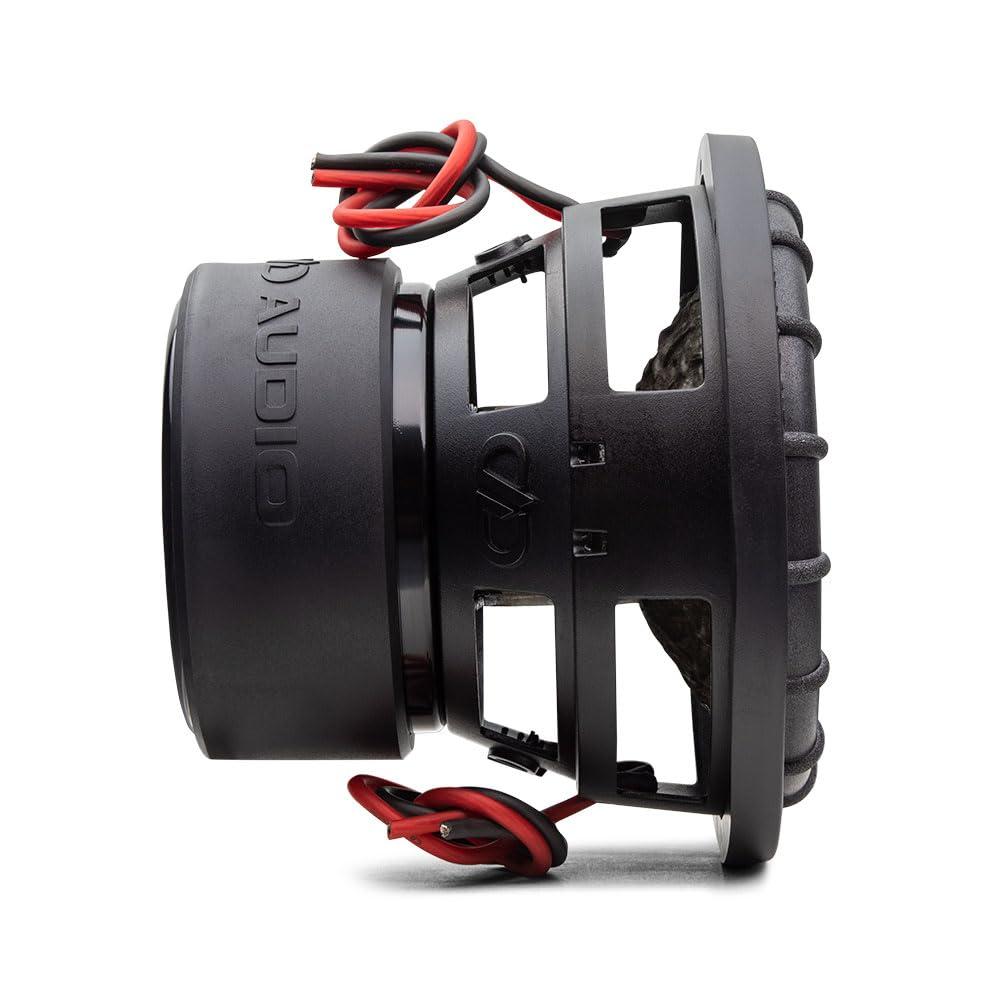

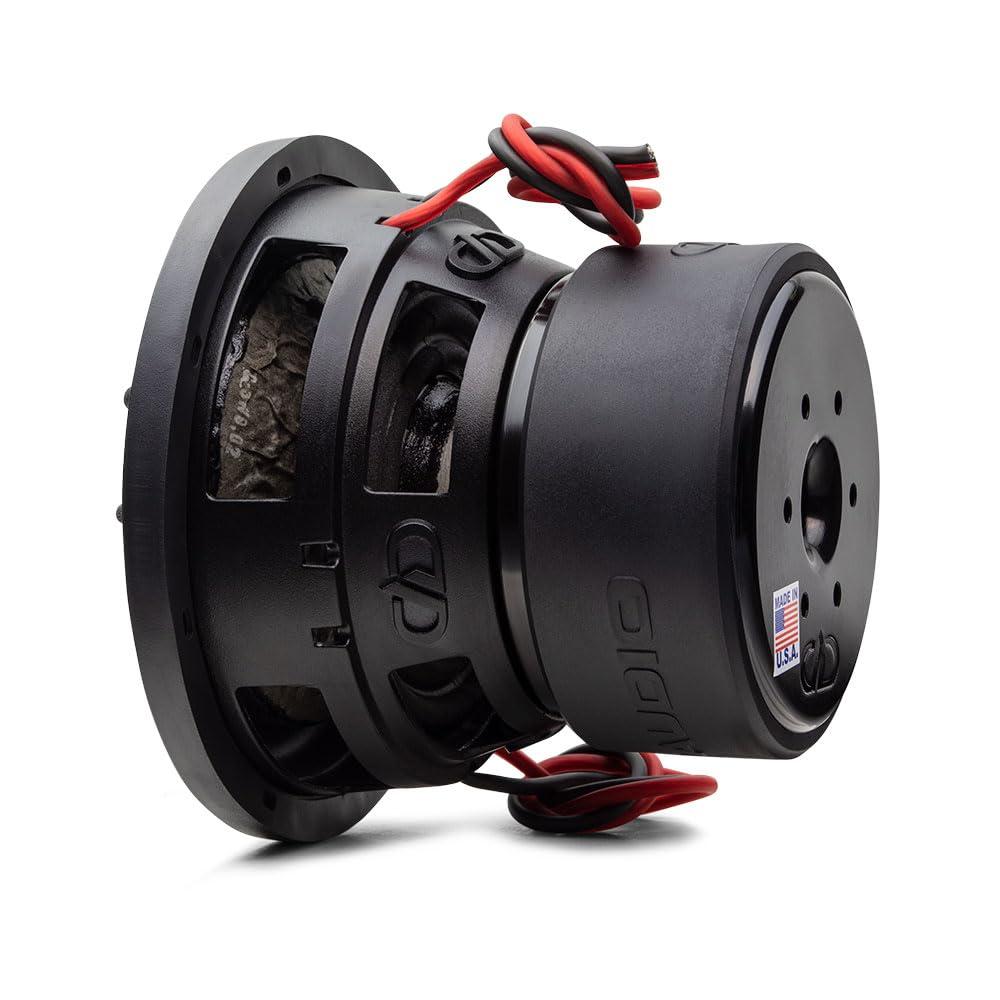

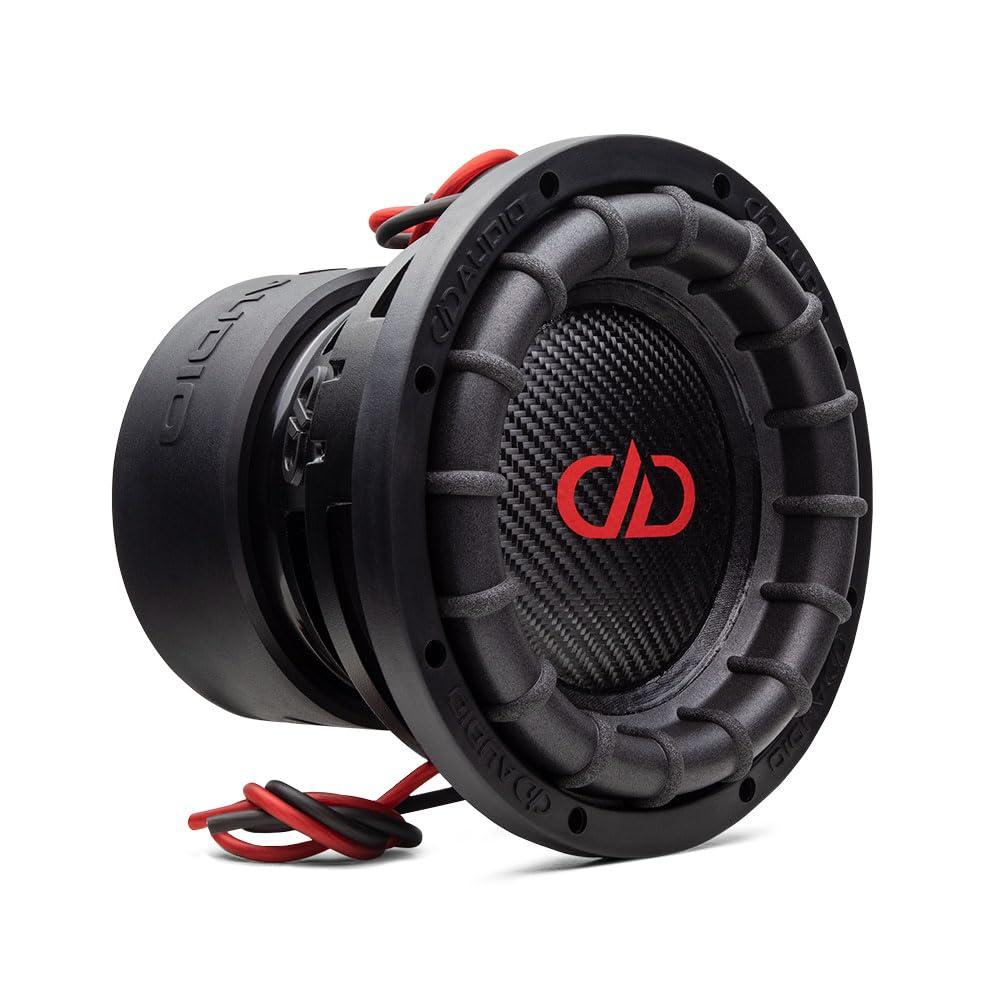

2508G-D4 | DD Audio Digital Designs 8" Dual 4-Ohm 3600W Subwoofer
FEATURES:
New Aluminum 2 Stage Heatsink
7.0 Inch Diameter Motor
20mm Top Plate
New 2nd Gen V-ROM surround
New Ironcloth Double Spider System
Hand Laid Carbon Fiber Dust Cap
DD ESP Cast Frame
Carbon Fiber Loaded, Non-Pressed Pulp Cone
Direct Leads
Laminated Tinsel Leads
Embossed DDesign Magnet Boot
SPECIFICATIONS:
Speaker Size (In): 8
Watts RMS: 1200
Watts Peak: 3600
Impedance: D2 / D4
VCD (In): 2.5
Piston Diameter (In): 7.25
Fs (Hz): 42
Qms: 5.88
Qes: 0.62
Qts: 0.56
Vas (Liters): 4.64
Xmech (MM): 57
Xmax (MM): 20
Frame OD (In): 8.95
Frame OD w/ Gasket (In): 9.25
Mounting Diameter (In): 8
Mounting Depth (In): 6.69
Motor Diameter (In): 7
Motor Depth (In): 3.25
Woofer Displacement (CuFt): 0.08
Sealed Enclosure (CuFt): 0.4 - 0.8
Ported Enclosure (CuFt): 0.75 - 1.25
