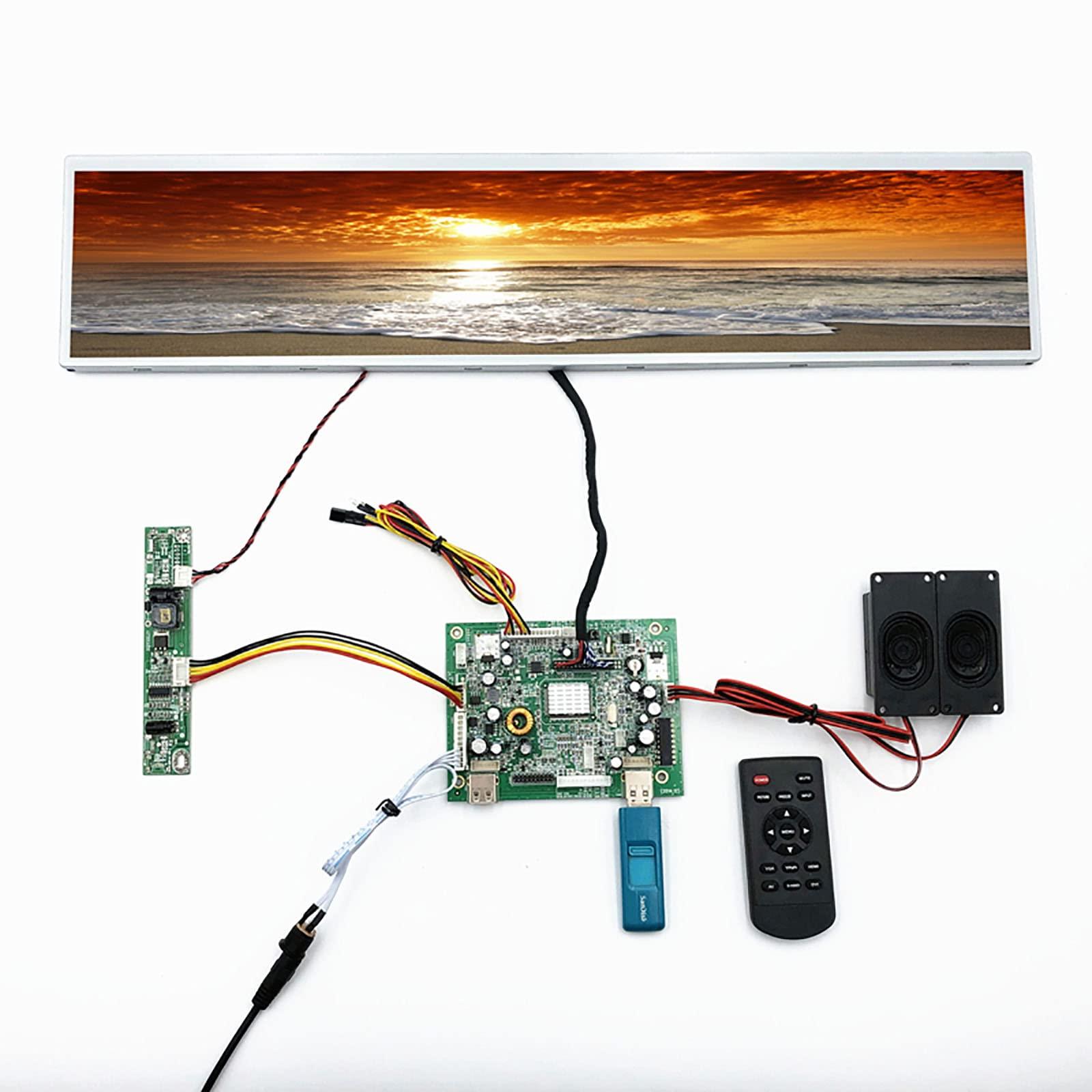

Description
- 19 inch DV190FBM-NB0 Stretched Bar LCD Resolution :1920(RGB)360 Outline Size :491.5(H)109.4(V) mm Display Area:476(H)89(V) mm
- controller HDMI inputSupports LVDS/ speaker output
- Recommend that this model be applied to Arcade CabinetStore shelf display screenDigital SignageStretched Bar LCD etc.
- Recommend Power Adapter Spec.:DC/12V More than 3A Power Adapter
- Packing list: 1.LCD panel *1/2.LVDS cable*1/3.Inverter board cable*2/4.Inverter board *1/5.HDMI board *1/6.IR Receivercable*1/7.DC cable*1/8.Remote control *1/9.Player board *1/ 10.Power adapter*1
Recommend that this model be applied to Arcade CabinetStore shelf display screenDigital SignageStretched Bar LCD etc.
If the size of the product or the signal input interface is not suitable for your project, please tell me your specific requirements, and we can customize a product suitable for you
1. LCD screen description
LCD model DV190FBM-NB0

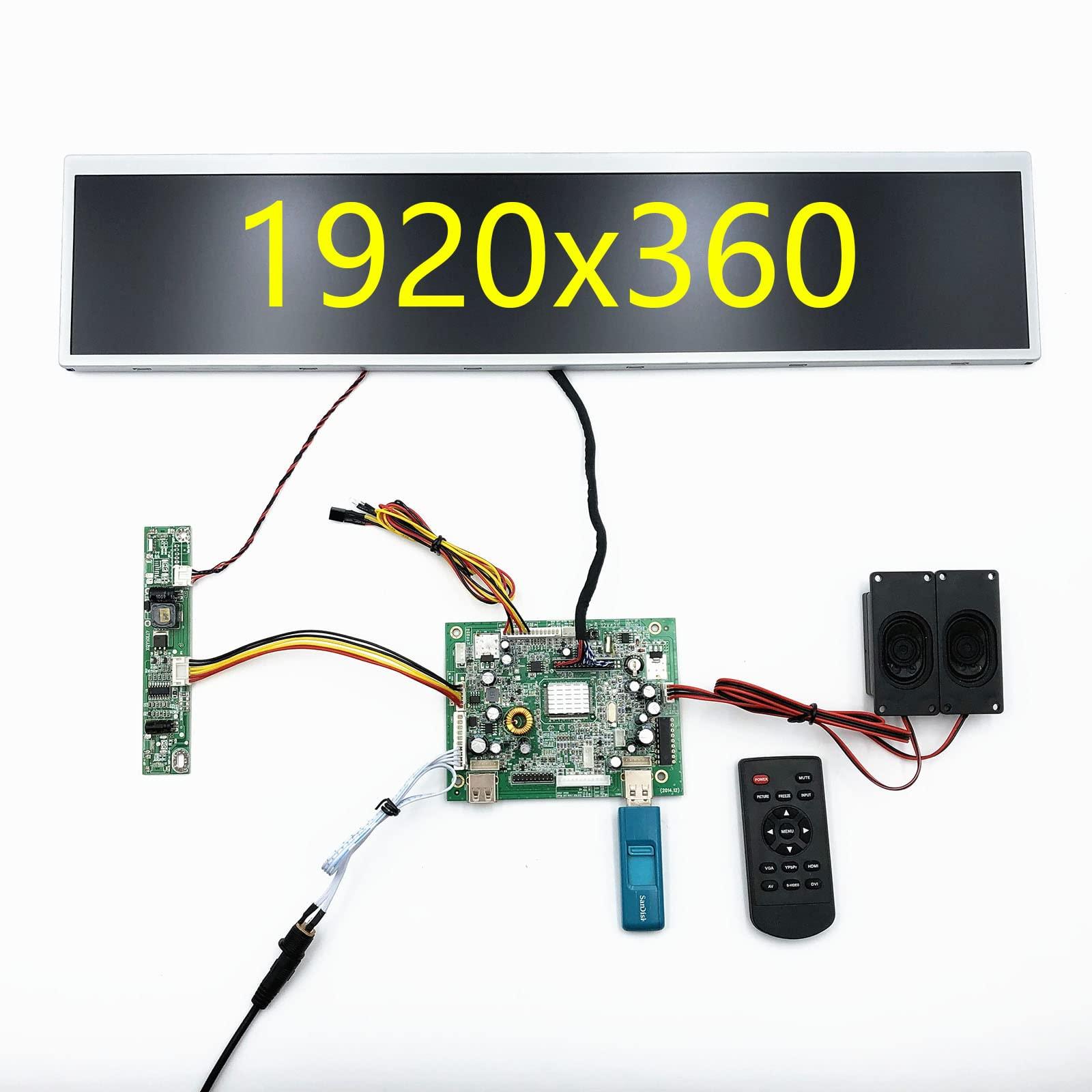

Resolution 1920(RGB)360
Outline Size : 491.5(H)109.4(V) mm
Display Area: 476(H)89(V) mm
Brightness : 300 cd/m (Typ.)
Contrast Ratio : 1200:1 (Typ.)(TM)
Viewing Angle : 89/89/89/89 (Typ.)(CR10)

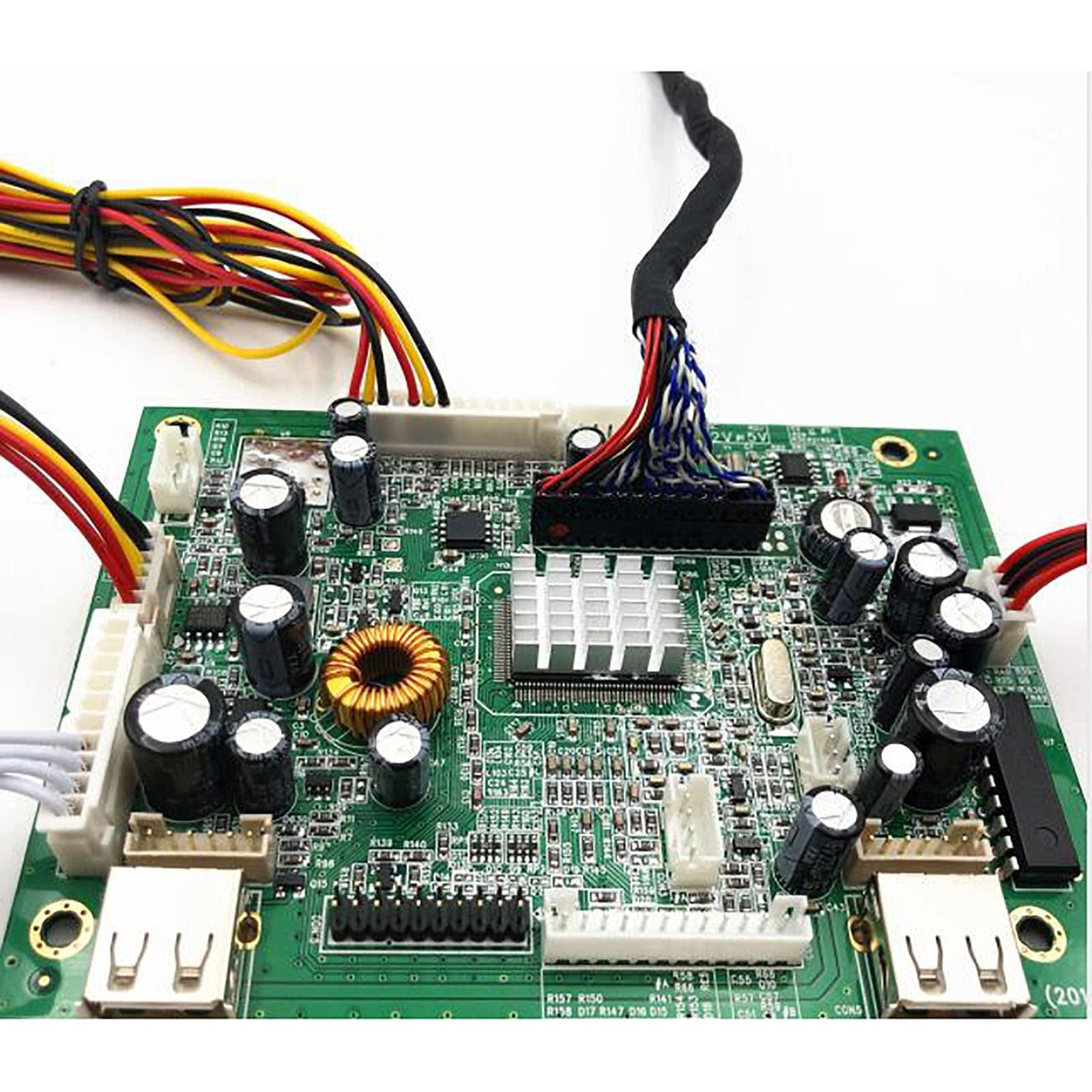

2. Player board description

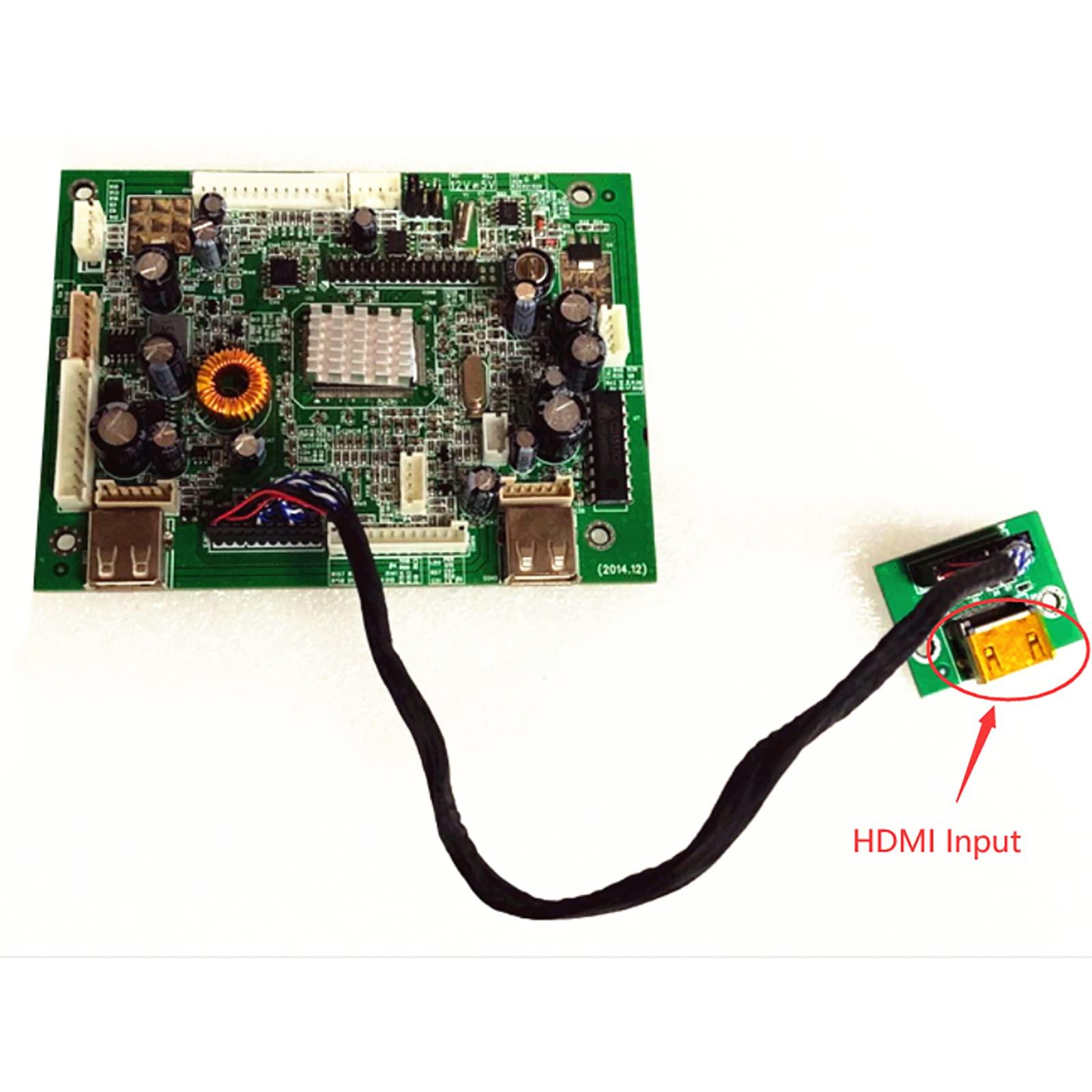

signal interface: Player board controller HDMI-compatible 2USB IR inputSupports LVDS/ speaker output
Maximum resolution supported 1920X1080@60Hz
PCD board size
Dimension : 116mm(L)*87.3mm(W)*19mm(H)
The height of PCB + highest component = 19mm
Screw Holes Size: 3.5mm x 4pcs

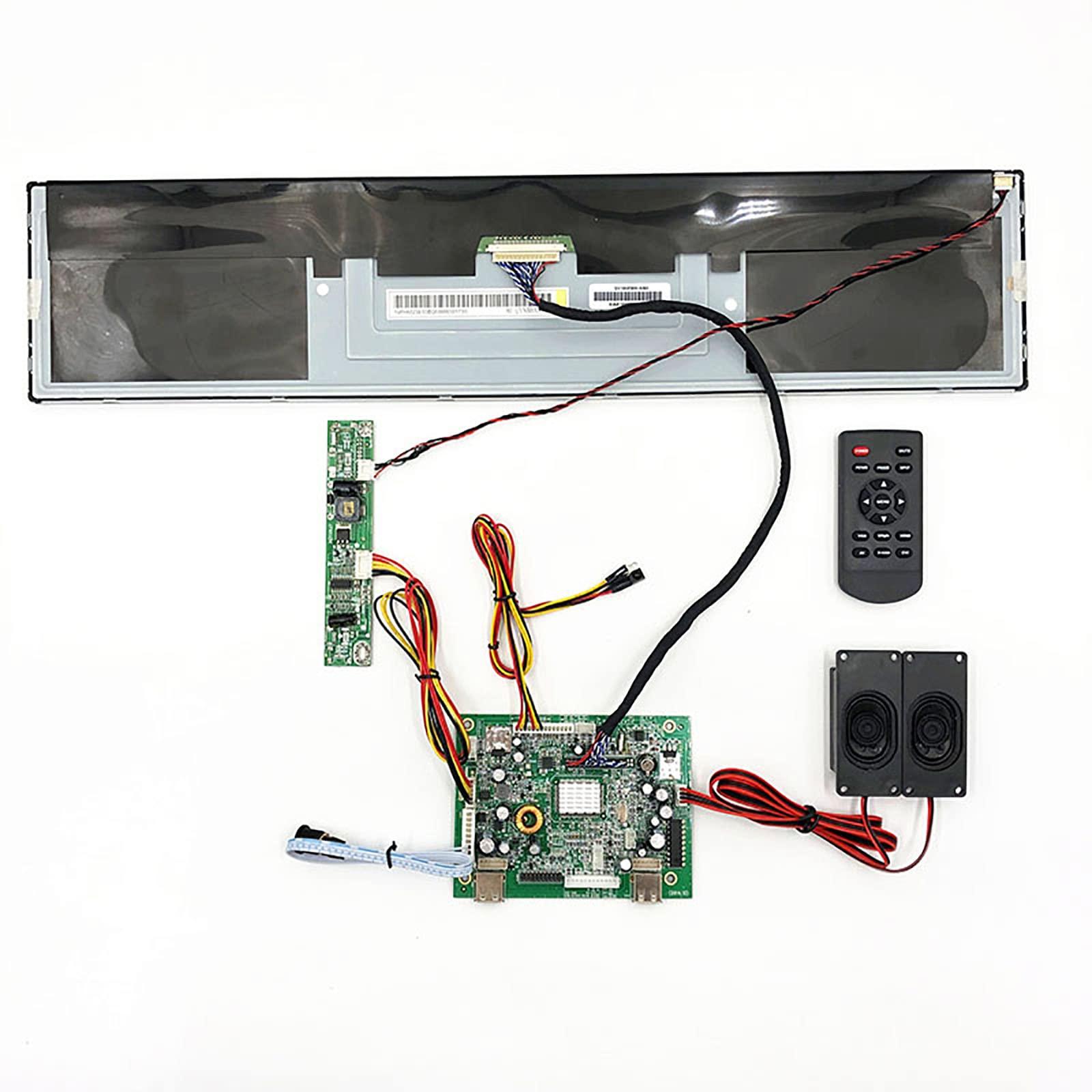

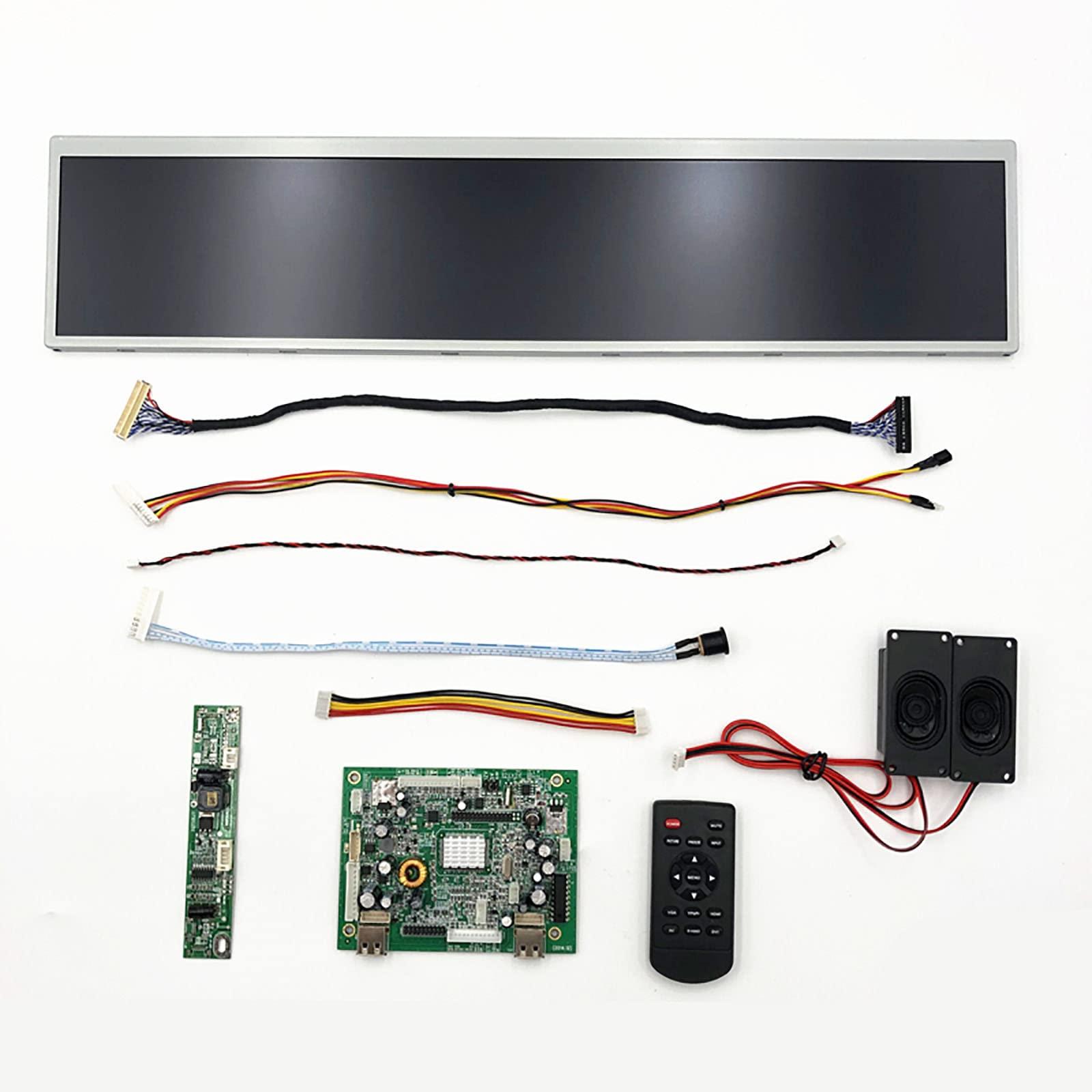

Packing List
1.LCD panel *1
2.LVDS cable*1
3.Inverter board cable*2
4.Inverter board *1
5. Player board*1
6. IR Receivercable*1
7.Power adapter*1
8. HDMI board*1
9. DC cabler*1
10. Remote control*1
Note: Due to different production batches, the style and color of the keypad and cable and inverter will be different, subject to the delivered product.
