Description

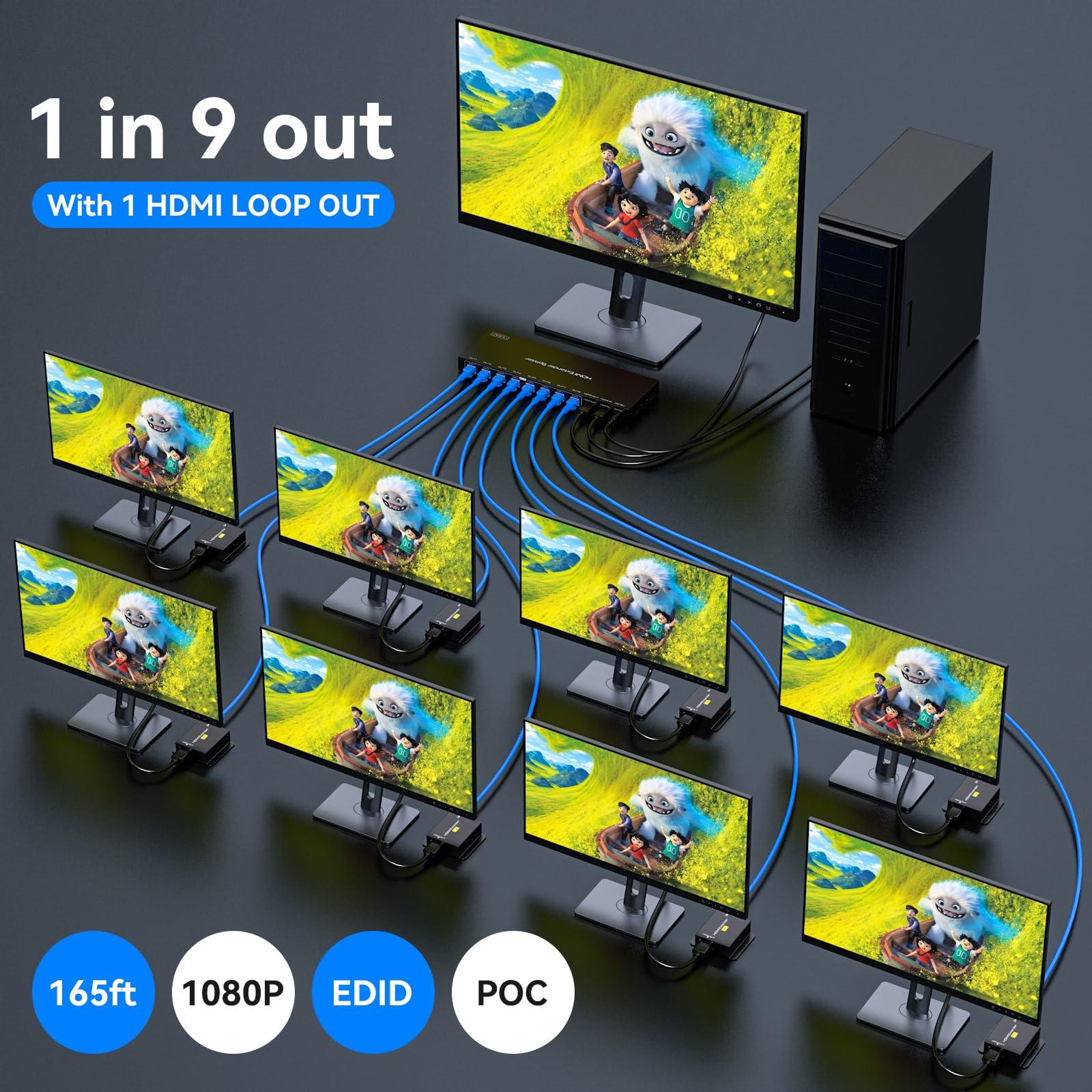

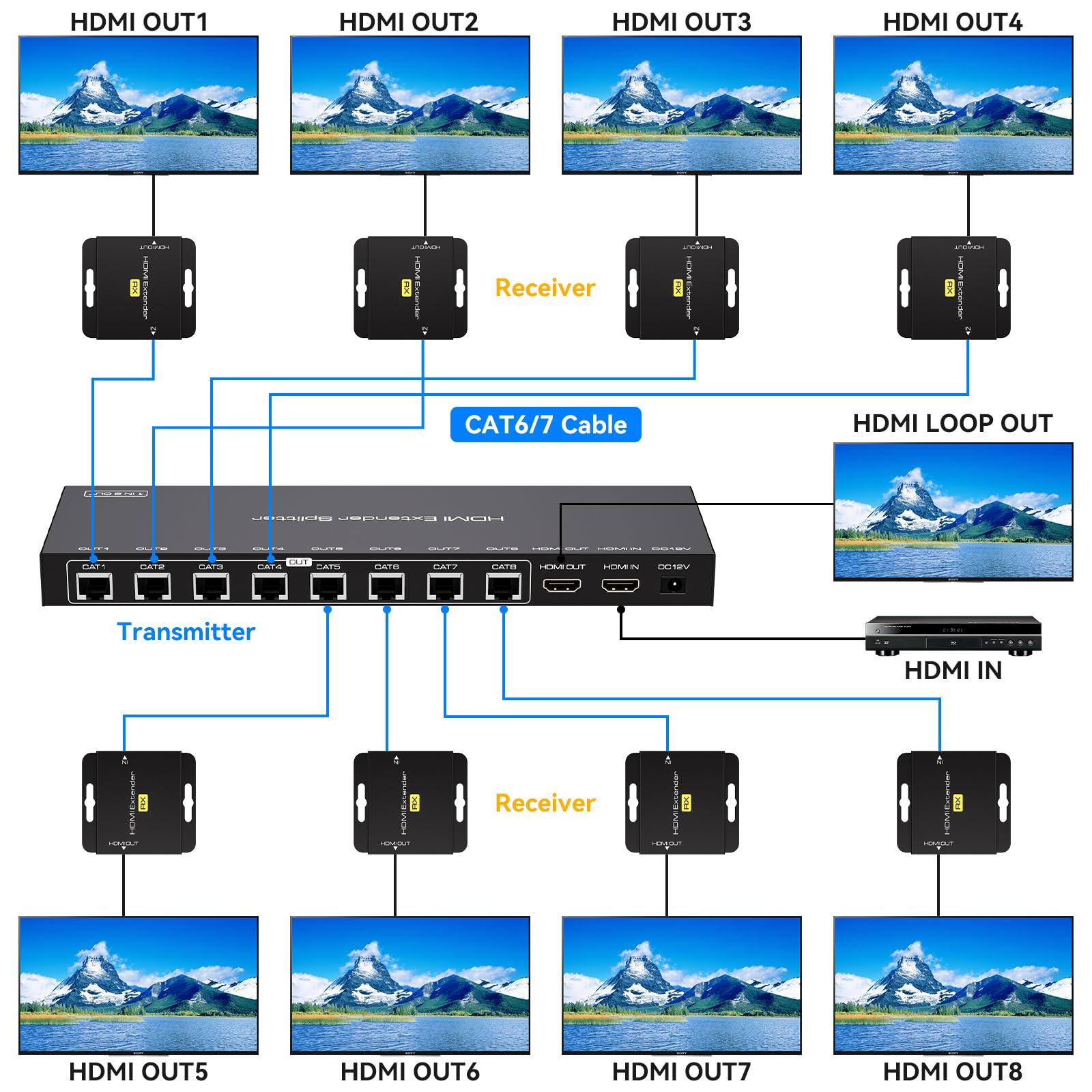

- HDMI Extender Splitter 1 Input 8 OutputThis HDMI Extender Splitter Over Ethernet can split one signal source into 8 identical signals for video and audio through CAT5e/CAT6 that can transmit up to 165FT (50m) distance. The HDMI extender ethernet has 1 HDMI loop-out, which is a long-distance audio / Ideal for video extender. Note: In order not to affect the video transmission quality, the network cable must comply with the T568B standard line sequence

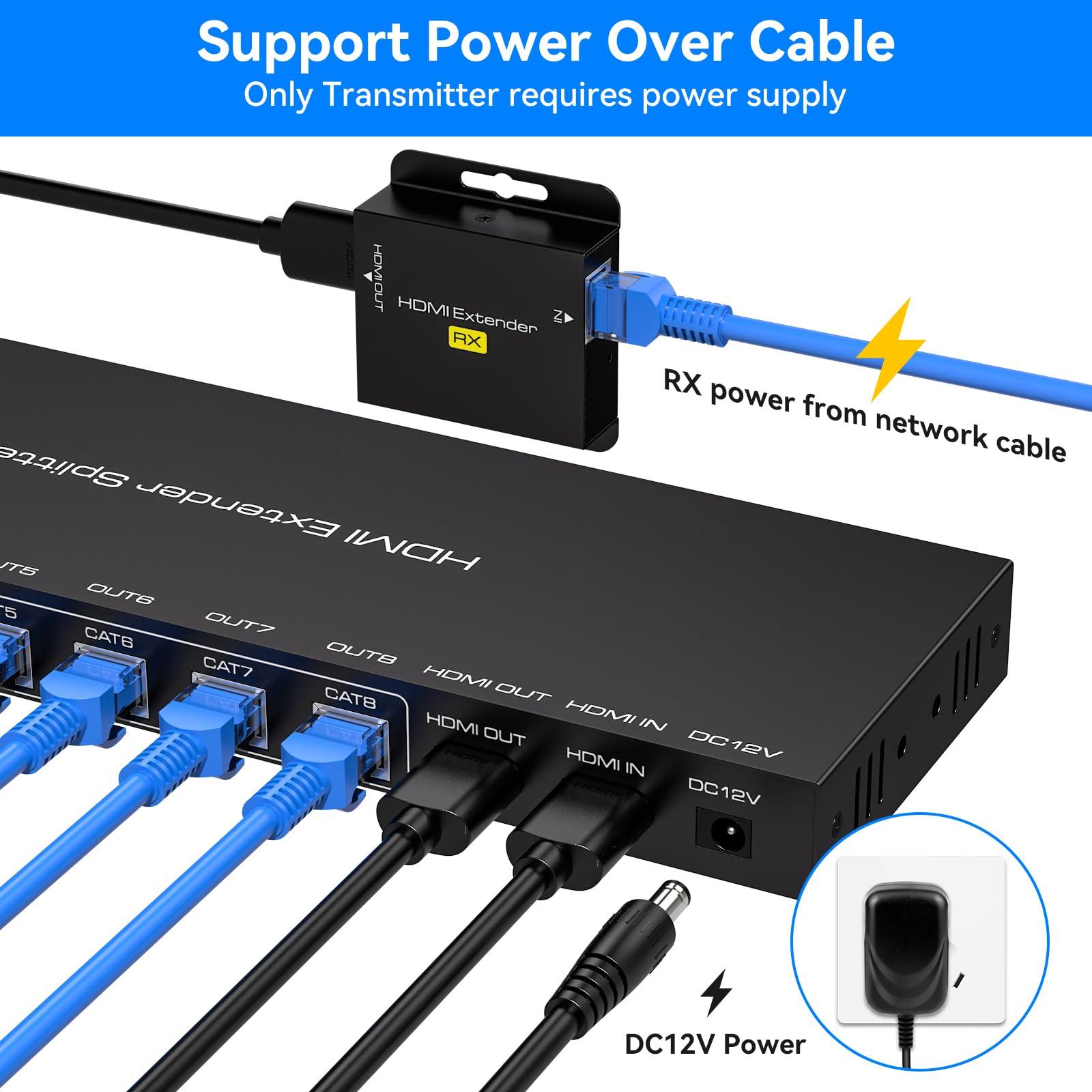

- Turn on CAT6 Power Through POC TechnologyThis Splitter Extender HDMI 1 in 8 out adopts POC technology, just connect the power supply to the TX port, and the RX port can support the operation of the whole device by connecting the network cable. The minimum transmission voltage is 5V, safe, reliable, simple and convenient. (Note: TX port must be connected to 12V power supply, otherwise it will damage the device)

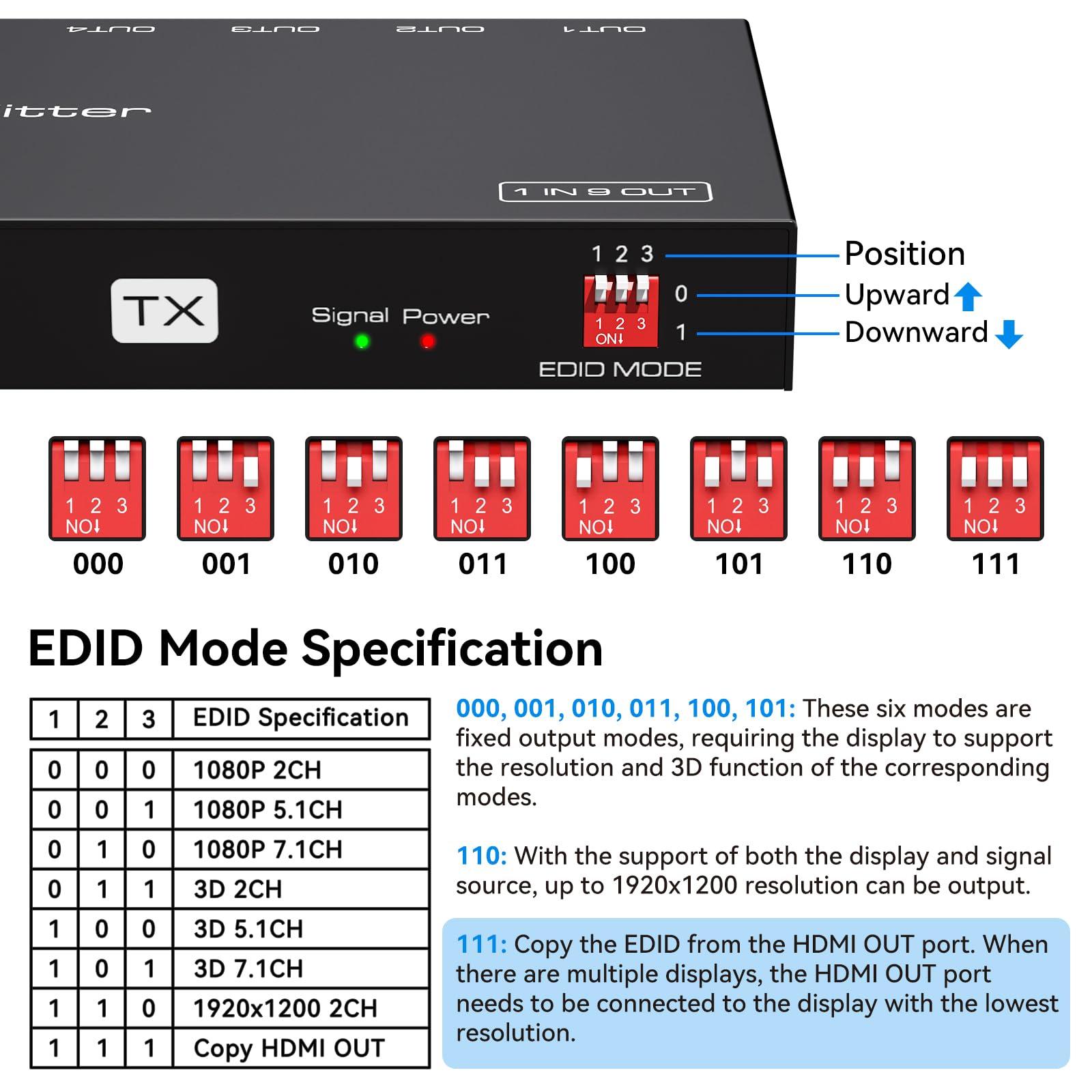

- Support for EDID PresetsThis Extender Splitter EDID Replication recognizes display device parameters and matches them to the device (source). Supports a wide range of EDID preset schemes, which greatly improves device compatibility. Plug and play, no driver is required to get the most suitable video/audio signal
- Uncompressed TransferThis HDMI Splitter Extender Supports resolution up to 1080P@60Hz and 3D visual enjoyment. Supports audio formats DTS-HD/LPCM7.1/DTS/AC3/DSD, and supports video color format 24bit. (Note: If you want to achieve a 3D visual experience, all devices connected to the extender must support 3D functionality)
- Widely CompatibleThe HDMI extender 1X8 is compatible with PC, game console, Blu-ray player, media player, etc, and can be used in education, indoor and outdoor LED screens, technology, video conferencing, multimedia home theater and other field
