Description

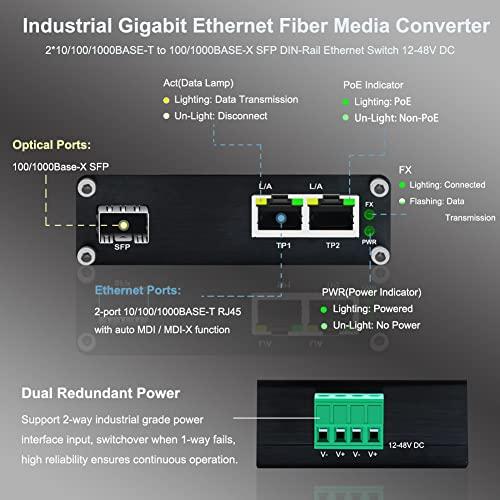

- 10/100/1000Mbps Ethernet PortThis Industrial Gigabit Ethernet Media Converter include 2*10/100/1000Base-T RJ45 full/half duplex auto-negotiation, MDI/MDIX function.
- Auto Sensing 100/1000Base-FXThe Media Converter SFP port Support both 155Mbps and 1.25G SFP module, it means you can use other device with 100M or 1000M fiber port on the other side.
- Dual Redundant Power- The Industrial Network Switch with DC 12-48V wide voltage inputs to provide Redundant Power inputs with function of overload current protection and anti-reverse connection protection. Support 2-way industrial grade power interface input, switchover when 1-way fails, high reliability ensures continuous operation.
- Industrial Grade QualityIP40 protection grade, it can work in a wide temperature range from -40C to 75C (-40F to 167F). 6KV lightning protection and overload protection, adapt to various harsh environments. Ideal for Surveillance Network, Industrial Automation, Intelligent Transportation, Smart City, etc.
- DIN Rail&Wall MountIndustrial grade aluminum alloy housing, super sturdy, surface grooved design for better heat dissipation, comes with an integrated DIN-rail Clip and Wall Mount accessories, installation and disassembly are very simple.
The LNK-IP1200A Ethernet over Coaxial Converter is a new designed Ethernet Extender Device.
This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is 984ft.
2PC BNC design, support connect 2 channel branch line at same time.
The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to 100Mbps.
The EOC series products are widely used in CCTV surveillance and remote network extension.
Specifications:
Technology: HomePlug AV
Encryption Algorithm: 128-bit AES
Power: DC44V~58V
Ethernet Interface: RJ45, 10/100Base-Tx
Coaxial Connector: BNC, 80Mbps TCP, 90Mbps UDP
Transmission Distance: 300m/984ft
Material: Metal
Working temperature: -40C to 75C
Dimension (WHD): 78mm70mm21mm/ 3.07*0.83*2.76inch
Weight: 0.139KG/ 0.31lb
Features:
-Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m;
-Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6;
-Input Voltage: DC 44V~58V;
-Support Power Over Coax & Power over Ethernet at same time;
-2PC BNC design, support to connect Max. 7 channels branch line;
-Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient;
-Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol;
-Advanced 128-bit AES encrypted transmission and PoE+ power technology;
-Excellent Protection: Built-in transient protection; industrial temperature range;
-Excellent lightning protection and strongly Anti-interference, surge protection.
Note: Power Supply not included, need to purchase separately.
Packages:
1 * LNK-IP1200A
1 * LNK-IP1200AP
1 * EOC Converter Users Manual
