Description
- Fits most 23 24 26 27 30 32 inch LCD LED Flat Panel Screen TVs
- Fits TVs VESA (mounting hole patterns) 75/100/200/200x100mm

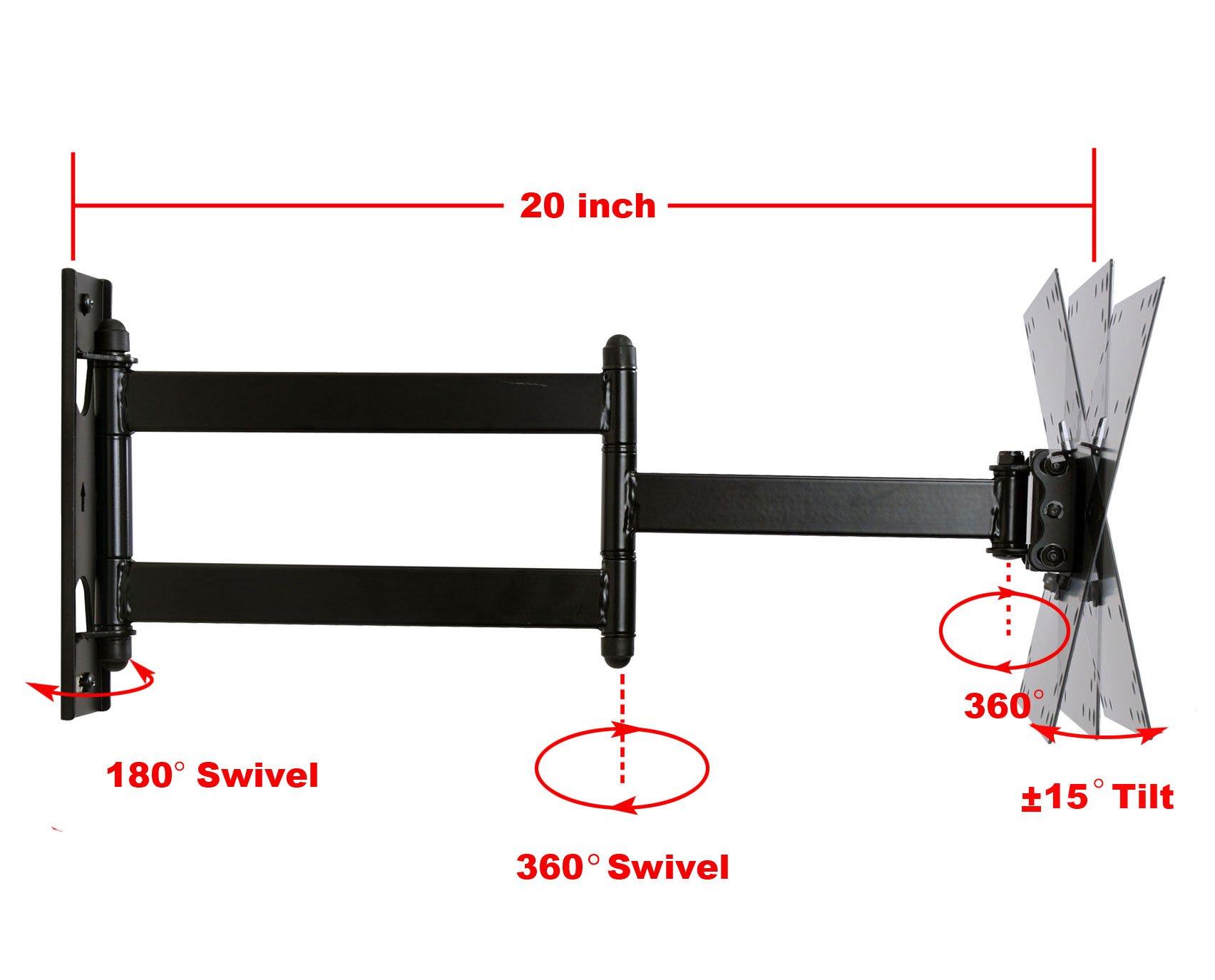

- Load capacity up to 66 lbs, Hinged arm extends up to 20 inch, Retracts to 1.9" to save space
- Adjustable tilt of 15 degrees up or down; Offers up to +/-90 degrees of swivel and 5 degrees rotation for level adjustment

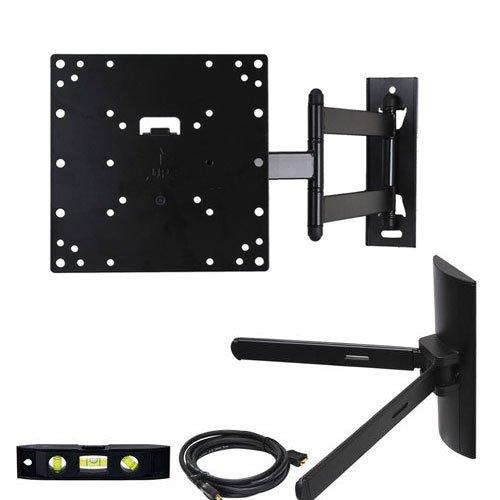

- Comes with one VCR DVR DVD mount bracket, standard hardware and free 6" 3-Axis Magnetic Bubble Level

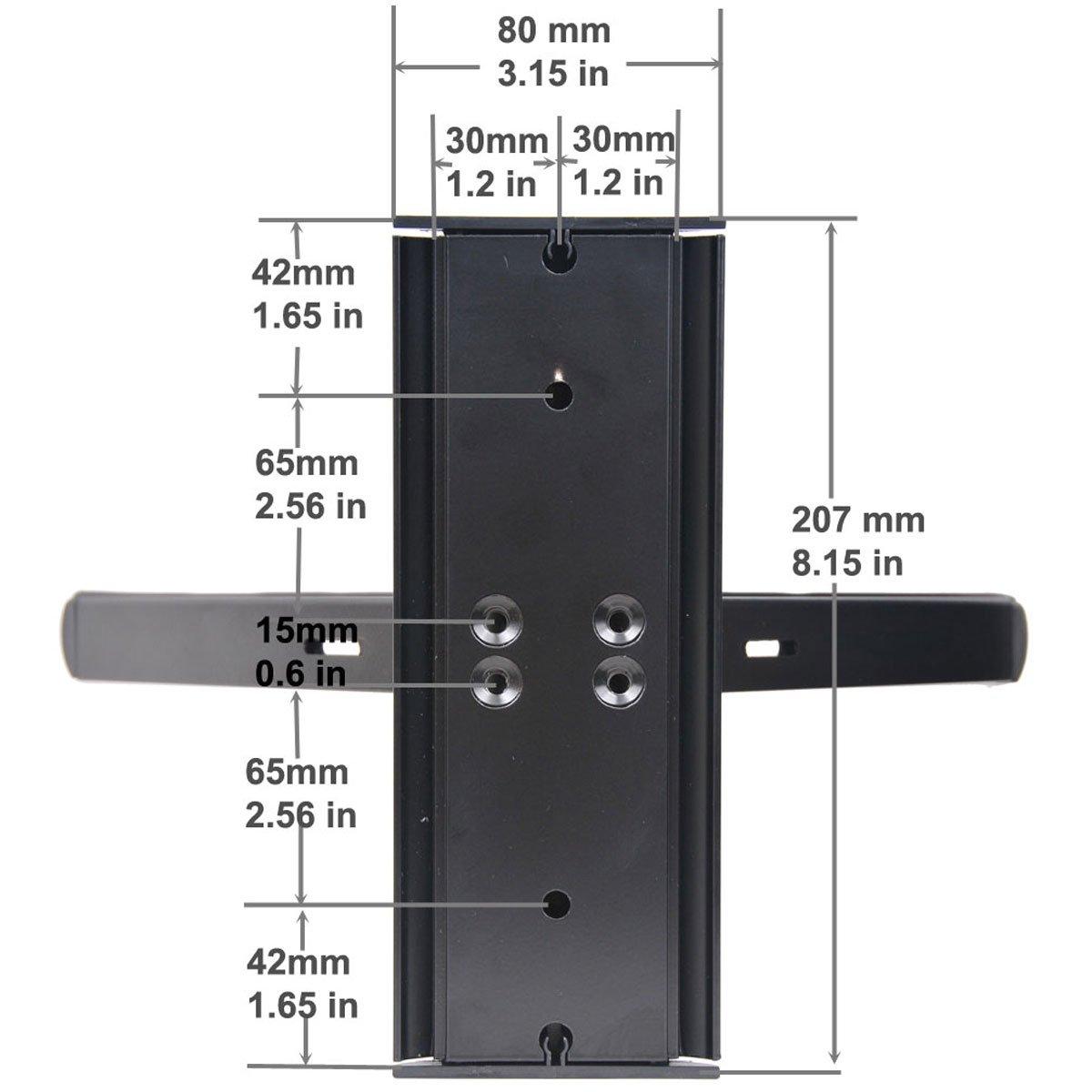

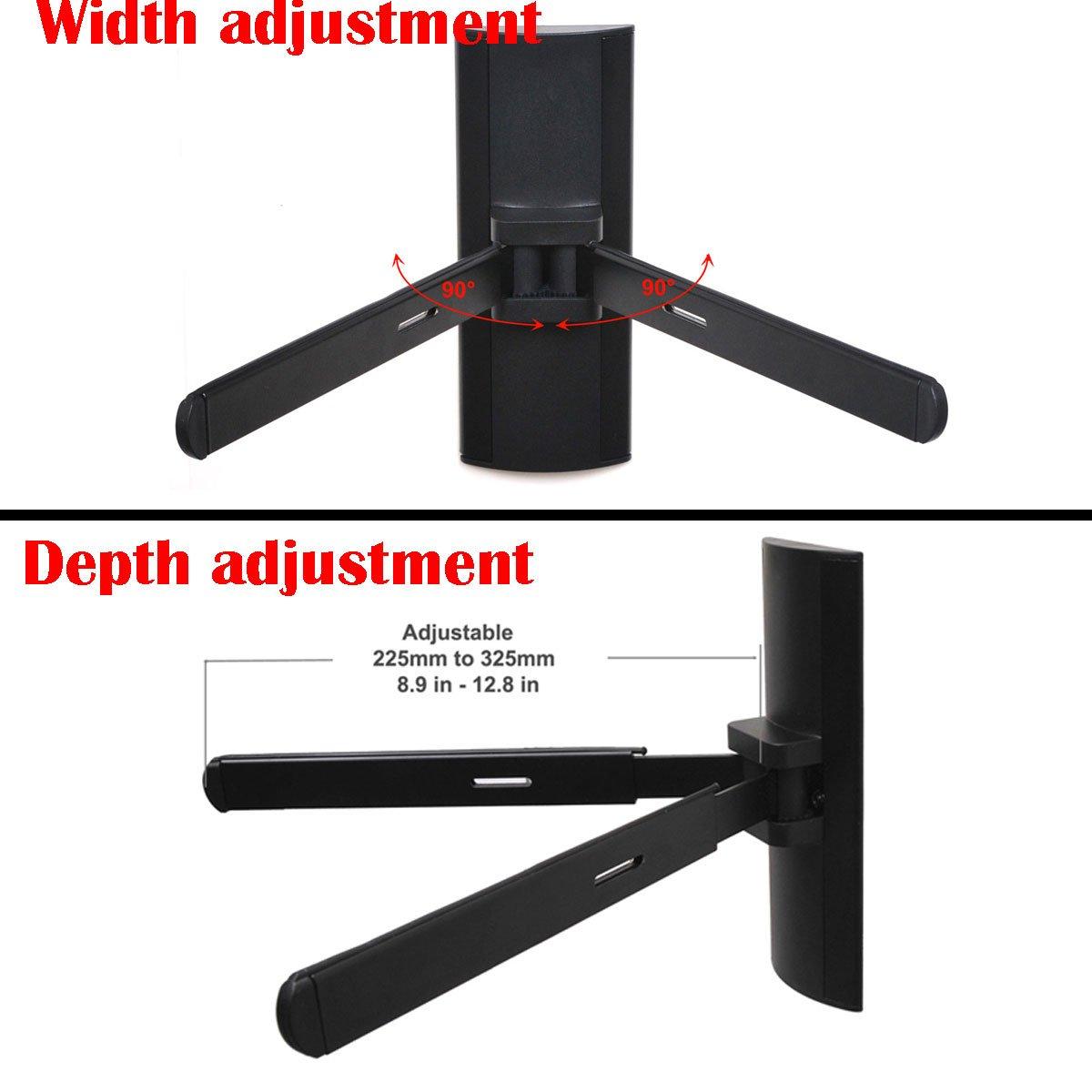

The VideoSecu articulating LED LCD TV wall mount supports most 23"-32" LCD LED plasma TV. It folds flat against the wall or extends out up to 20". The two-link arm provides up to 180 degrees of swivel and easy 15 degrees tilt up and down for perfect viewing angle. This VCR/DVD bracket attaches directly to the wall, underneath any of the Plasma or LCD TV mounts and accommodates most front-panel-accessible components.

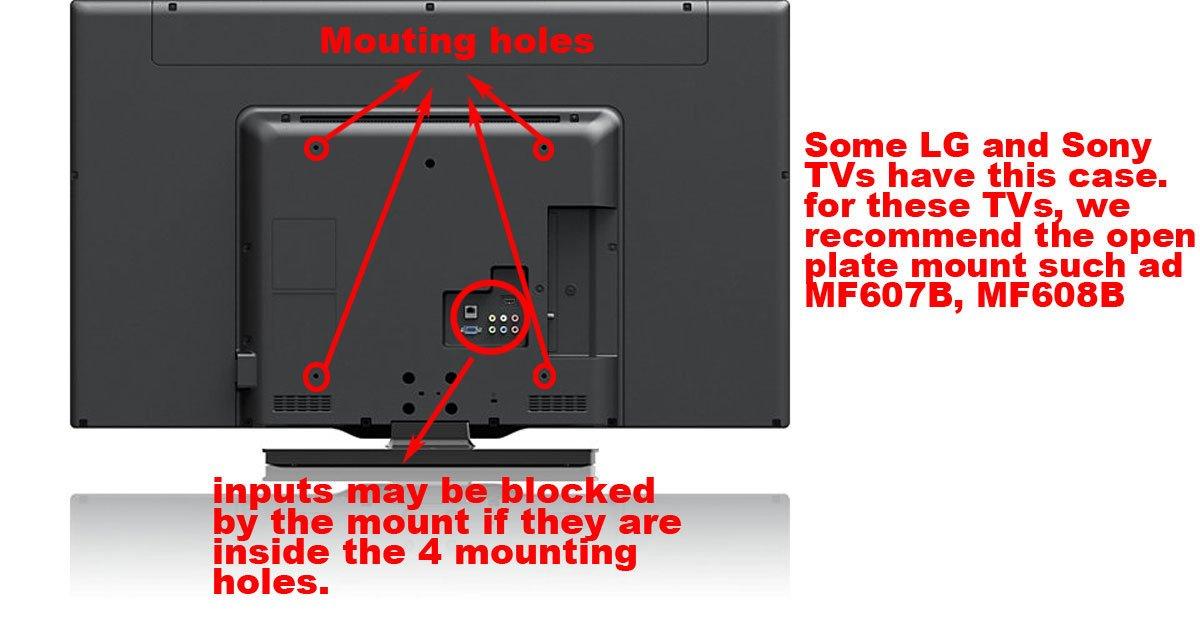

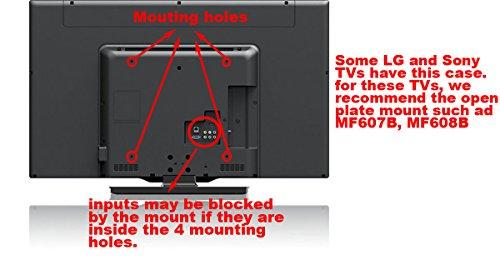

Will the mount fit my TV? Firstly, please check the weight of your display, it should be less than 55 lbs. Secondly, If your Monitor or TV has 4 mounting holes on the back of the screen that are 200x200/200x100/100x100mm/75x75mm(8"x8"/8"x4"/4"x4"/3"x3") apart from each other vertically and horizontally this bracket will fit. In addition, please check the area inside the 4 mounting holes to make sure there are not any plugs. Otherwise, the plate may block the plugs.
Notice: This mount fits most 22-32" TVs, do not work for some old size 37 39 inch TVs manufactured before 2013 year.
